In high-end manufacturing sectors including aerospace, automotive electronics, semiconductors, and new energy, product environmental adaptability defines core reliability and market competitiveness. As a core device for environmental reliability testing, the rapid temperature change test chamber accelerates and exposes early failures caused by component defects, structural flaws, and process deficiencies by applying controllable thermal stress, enabling manufacturers to optimize product quality and eliminate hidden risks in advance.
Lab Companion is a professional Chinese manufacturer specializing in environmental test equipment with 21 years of R&D and production experience (2005–2026). As a national high-tech and specialized enterprise in China, we adhere to independent innovation and sophisticated manufacturing standards. The TC series rapid temperature change test chamber integrates a wide temperature range, multi-rate adjustment, and high-precision temperature control, serving as a trusted standard solution for global industrial thermal cycling reliability tests.
Versatile Application Scenarios & Full-Capacity Customization

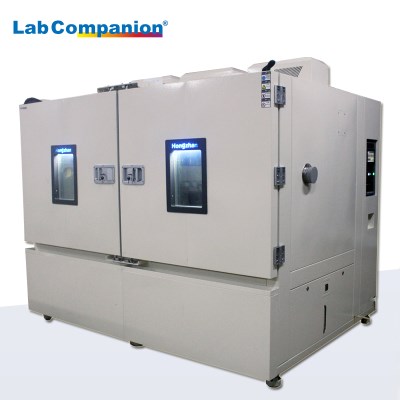

The TC series is dedicated to dry rapid temperature cycling testing (no humidity control required), perfectly suited for reliability verification of electronic components, PCB boards, automotive parts, semiconductor chips, and aerospace components.
It covers multiple standard chamber volumes: 180L, 400L, 600L, 800L, and 1000L. Custom sizes ranging from 80L to 8000L are available to meet diverse testing demands from micro-components to complete finished products, delivering flexible and scalable testing solutions for global clients.
1. Core Performance｜Wide Temperature Span, High Precision & Adjustable Rate
Ultra-Wide Temperature Coverage for Extreme Condition Simulation
Featuring a standard temperature range of -70℃ to +150℃, the chamber simulates extreme cold and high-temperature operating environments. It supports low-temperature performance testing for new energy batteries and high-temperature reliability validation for precision chips and aerospace parts, covering almost all extreme thermal environment test standards in advanced manufacturing.
High-Precision Temperature Control for Repeatable Test Data
Built with a premium temperature control system to ensure uniform and stable internal temperature:
• Temperature Fluctuation: ≤0.5℃
• Temperature Deviation: ±2℃
Consistent temperature accuracy guarantees highly repeatable and traceable test results, fully complying with strict reliability testing requirements for high-end industrial products.
5-Grade Adjustable Temperature Change Rates
The TC series offers 5℃/min, 10℃/min, 15℃/min, 20℃/min, 25℃/min linear and non-linear temperature change rates to match different industry standards and sample specifications:
• 5℃/min: General-purpose thermal cycling tests for conventional electronic products
• 10℃/min: Medium-severity thermal environment simulation for industrial components
• 15℃/min–25℃/min: High-stringency testing for aerospace, automotive electronics, and semiconductors
An optional liquid nitrogen auxiliary cooling system boosts the cooling rate up to30℃/min, meeting ultra-fast thermal cycling test requirements.
Effective Stable Temperature Zone
The valid temperature change rate range is -55℃ to +125℃, ensuring stable and reliable thermal cycling performance in mainstream industrial test temperature zones and avoiding invalid or distorted test data.
2. Core System Configuration｜Stable, Efficient & Energy-Saving
Dual-Stage Cascaded Refrigeration System
Equipped with a professional dual-stage cascaded refrigeration system and world-class core components, including Bitzer and Copeland compressors, as well as Danfoss and Saginomiya control valves. The system operates stably even at -70℃ ultra-low temperature without shutdown failure.
Adopting eco-friendly refrigerants that meet international environmental standards. With Lab Companion’s self-developed cold balance energy-saving control technology, it eliminates the traditional energy waste of simultaneous cooling and heating. It reduces energy consumption by 30%–60% and extends compressor service life by 50%, greatly lowering long-term operational costs.
Fast-Response Heating System
Durable nichrome sheathed heaters deliver fast heating speed, corrosion resistance, and moisture resistance. Combined with a forced convection air circulation design, it achieves uniform temperature distribution inside the chamber and eliminates local overheating, ensuring consistent test conditions.
Intelligent PID Control System
Featuring an intuitive color touchscreen and self-developed intelligent PID control system, the chamber supports both program and fixed-value operation modes. It stores up to 120 test programs with 100 segments per program and 999-cycle repetition, adapting to complex customized test procedures.
High-precision Class A Pt100 armored platinum resistor ensures a temperature display resolution of 0.01℃. Built-in RS485, LAN, and USB interfaces support real-time data recording, export, and connection with laboratory management systems, realizing intelligent and traceable testing management.
3. Material & Craftsmanship｜Durable & Internationally Certified
• Inner Chamber: SUS304 stainless steel, corrosion-resistant, oxidation-proof, and easy to clean
• Outer Cabinet: High-quality anti-corrosion electrolytic plate with electrostatic baking finish, durable and elegant
• Control Mode: Precision PID + PWM + SSR balanced temperature control for superior temperature stability
• Official Certification: CE certified. All equipment is calibrated and certified by China National Institute of Metrology before delivery, ensuring authoritative and accurate test data.
4. Global Manufacturing & Professional After-Sales Support
Lab Companion is a premium environmental test equipment brand manufactured in China. We own multiple standardized R&D and manufacturing bases in China, equipped with complete production, calibration, and quality inspection systems to deliver cost-effective, high-quality testing equipment for global customers.
To serve global partners efficiently, we adopt an online full-lifecycle service model for overseas markets:
• Professional pre-sales technical consultation and customized solution design
• 24/7 online remote guidance for equipment installation, commissioning, operation, and parameter debugging
• Global spare parts supply system and remote fault diagnosis & maintenance guidance
• Systematic online technical training and after-sales follow-up service
No on-site service is provided for overseas orders, but our mature remote support system ensures rapid response and stable equipment operation for global users.
5. Product Summary
The Lab Companion TC series rapid temperature change test chamber is a high-performance thermal cycling testing solution. With a-70℃~+150℃ ultra-wide temperature range, 5–25℃/min adjustable rate, and high-precision stable temperature control, it fully meets the rigorous reliability testing standards of semiconductors, new energy, automotive electronics, aerospace, and optoelectronic industries.
Backed by China’s advanced manufacturing capabilities and a global online service system, Lab Companion provides standardized equipment and customized one-stop testing solutions for global industrial clients, serving as a reliable long-term partner for laboratory reliability testing construction worldwide.
1. Standard-Driven Testing Upgrade for Semiconductor & Automotive Electronics
Semiconductor and automotive electronic reliability testing is governed by two globally authoritative standard systems: the JEDEC JESD22 series for semiconductor components and theAEC-Q series for automotive-grade electronics. As the core mandatory environmental stress test for both standards, thermal cycling and rapid temperature change testing verifies the long-term durability and structural stability of electronic products under extreme temperature conditions.
With continuous tightening of industrial certification specifications, conventional thermal chambers can no longer meet upgraded compliance requirements. JEDEC JESD22-A104 imposes strict constraints on test temperature ranges and temperature ramp rates, while AEC-Q100 strictly regulates ramp speed, extreme temperature dwell time and cycle counts for automotive qualification. The combination of thermal cycling stress and EMC shielding testing creates dual technical challenges that traditional testing equipment cannot address, resulting in inaccurate data and poor test repeatability.
The Lab Companion EMC Shielded Rapid Thermal Cycling Chamber is professionally developed for full compliance with JEDEC and AEC-Q global standards. Serving as an all-in-one composite test platform, it delivers standardized, high-precision environmental simulation to support full-process reliability verification covering semiconductor chips, electronic modules and complete vehicle electronic systems.
2. JEDEC JESD22-A104 Standard Requirements for Semiconductor Testing
2.1 Core Specifications of JESD22-A104 Thermal Cycling Test
JEDEC JESD22-A104 is the universal industry benchmark for semiconductor thermal cycling validation. It is designed to evaluate the fatigue resistance of IC packages, bonding wires, solder joints and molding compounds under repeated high and low temperature alternating stress.
The standard defines clear test parameters: a temperature range of -65℃ to +150℃, 10 to 15 minutes of dwell time at extreme temperatures, a minimum ramp rate of 15℃/min, and up to 1000+ continuous thermal cycles. This test effectively exposes common latent failures including package cracking, bond wire fracture, molding delamination and solder ball detachment.
It mandates air-to-air thermal cycling with stable and controllable temperature ramp speeds, ensuring tests capture cumulative thermal fatigue effects rather than instantaneous thermal shock. This requires test equipment to deliver excellent temperature accuracy, uniform internal temperature distribution and consistent ramp stability.
2.2 Precision Requirements for Modern Semiconductor Reliability Testing
Today’s semiconductors feature high integration, miniaturization and high operational performance, leaving extremely low tolerance for testing errors. JEDEC official certification demands highly repeatable, traceable and authoritative test data.
Traditional thermal chambers suffer from uneven temperature fields and unstable ramp control, leading to inconsistent test results, repeated certification trials and delayed product launches. To resolve these pain points, semiconductor testing equipment must meet three core criteria: full coverage of JEDEC standard temperature ranges, high-precision constant temperature control for reliable certification data, and efficient rapid thermal cycling to accelerate R&D and mass production screening.
3. Lab Companion’s Full Compliance with JEDEC Industrial Standards
3.1 Ultra-Wide Temperature Range with Ample Performance Margin
Lab Companion EMC shielded rapid thermal cycling chambers adopt a premium temperature design, with a standard test range of -70℃ to +150℃ and an ultra-low temperature limit of -80℃. This fully covers the -65℃ to +150℃ test range specified by JEDEC JESD22-A104. The reserved low-temperature performance margin ensures stable long-term operation even during high-frequency cyclic testing.
Standard units achieve a temperature fluctuation of ±0.5℃ and a temperature uniformity of ±2.0℃. For high-end semiconductor precision testing scenarios, dedicated models support ultra-high precision control with ±0.2℃ fluctuation and ±0.4℃ uniformity. The optional AI intelligent temperature control system automatically adjusts operating parameters based on component heat capacity, ensuring consistent compliance with JEDEC standard requirements.
3.2 Stable Ramp Rate Exceeding JEDEC 15℃/min Mandatory Standard
Lab Companion chambers support adjustable linear and non-linear temperature ramp rates ranging from 5℃/min to 25℃/min. The mainstream model only takes 6.25 minutes to complete heating from -40℃ to 85℃, delivering a stable ramp rate above 15℃/min to fully meet the mandatory requirements of JEDEC JESD22-A104.
For extreme stress screening and high-strength aging tests, an optional liquid nitrogen cooling system supports ramp rates over 20℃/min. All equipment is CE certified, providing qualified and reliable hardware support for semiconductor enterprises’ JEDEC certification applications.
3.3 Full-Process Adaptation for Chip R&D and Final Testing
Lab Companion provides semiconductor-specific thermal cycling solutions that cover the entire industrial chain, including chip design verification, packaging testing and mass production reliability screening. Equipped with a dual-stage cascade refrigeration system and optimized air duct structure, the equipment delivers ultra-stable temperature field performance and supports 24/7 unattended continuous cyclic testing.
The built-in high-precision data logging system fully records real-time temperature curves and equipment operation logs, enabling complete data traceability to support factory quality management and third-party certification audits.
4. AEC-Q Standard Compliance for Automotive-Grade Electronic Verification
4.1 Core Thermal Cycling Specifications of AEC-Q100
AEC-Q100 is the fundamental stress test standard for automotive-grade integrated circuits. It specifies two levels of thermal cycling conditions: a conventional range of -55℃ to +125℃ and a harsh extended range of -65℃ to +150℃. To ensure complete thermal saturation of test samples, the standard requires 10–20 minutes of dwell time at extreme temperatures, a 10–15℃/min temperature ramp rate, and a minimum of 1000 cycles for formal automotive qualification.
The widely adopted TC3 test condition (-40℃ to +125℃, 1000 cycles) poses stringent requirements on equipment’s long-term operational stability, ramp control accuracy and internal temperature uniformity.
4.2 Full Coverage of AEC-Q and ISO Automotive Standards
Lab Companion EMC thermal cycling chambers are uniquely optimized for automotive electronic testing. They fully comply with AEC-Q100 (chip-level certification), AEC-Q104 (module-level certification) and ISO 16750-4 (vehicle environmental reliability) standards. The intelligent Q8 controller is preloaded with global mainstream automotive test profiles. Users can initiate standardized testing with one click, with the system automatically matching temperature range, ramp rate, dwell time and cycle parameters.
4.3 Solving the Thermal-EMC Coupling Pain Point in Automotive Testing
Unlike consumer electronics, automotive electronic components exhibit highly variable electrical performance under temperature fluctuations. Low temperatures trigger reference voltage drift in MCU/SoC chips, crystal frequency deviation and PLL jitter deterioration. High temperatures raise MOS junction capacitance, transformer winding resistance and magnetic material loss. Rapid thermal cycling further causes CTE mismatch, solder micro-cracks and unstable connector contact resistance, which are primary causes of long-term failure in vehicle electronic systems.
Lab Companion’s core competitive advantage lies in its integrated thermal cycling and EMC shielding design. Test samples remain in a complete, stable temperature field while external signal interfaces connect to professional testing instruments. This enables in-situ EMC pre-compliance testing (radiated and conducted emission) during thermal cycling, avoiding test errors caused by temperature field interruption and fully meeting the full-lifecycle reliability verification requirements of AEC-Q standards.
5. Technical System Supporting Dual-Standard Full Compliance
5.1 Systematic Full-Parameter Standard Matching
Lab Companion achieves systematic and comprehensive standard adaptation, rather than superficial parameter compliance, fully satisfying all core assessment criteria of global semiconductor and automotive testing standards:
• Temperature Range: -70℃ to +150℃, fully covering all extreme test conditions of JEDEC and AEC-Q standards
• Temperature Ramp Rate: 5–25℃/min adjustable, perfectly matching JEDEC (≥15℃/min) and AEC-Q (10–15℃/min) rate requirements
• Temperature Accuracy: Multi-level precision from ±0.2℃ to ±0.5℃, exceeding the basic requirements of international standards
• Temperature Uniformity: ≤±2.0℃ for standard models; ≤±0.4℃ for high-precision semiconductor models
• EMC Shielding Performance: Over 50dB shielding effectiveness in the 0.5–3.0GHz frequency band, supporting synchronous thermal cycling and EMC testing
5.2 Customizable Full-Cycle Technical Services
Lab Companion provides personalized configuration and customized solutions for diverse industrial test scenarios. Optional enhanced functions include humidity control, nitrogen purging and probe station reserved interfaces. Equipped with a Siemens PLC intelligent control system, the chamber supports custom programming and remote real-time monitoring.
Standard chamber volumes range from 100L to 1000L, with customized oversized chambers up to 8000L available. This flexible size range adapts to testing scenarios from single tiny chips to large automotive modules. Preloaded global standard test profiles effectively reduce programming costs and shorten the certification cycle for global manufacturers.
6. All-in-One Solution for Full Industrial Chain Testing
From JEDEC-qualified semiconductor chip testing to AEC-Q-compliant verification of automotive modules and vehicle electronic systems, theLab Companion EMC Shielded Rapid Thermal Cycling Chamber serves as a unified, full-standard and full-scenario test platform.
Integrating ultra-wide temperature coverage, adjustable high-speed thermal cycling, high-precision temperature control and high-efficiency EMC shielding, the equipment eliminates the functional limitations of traditional single-function test devices. It is a universal composite stress test platform developed based on global semiconductor and automotive electronic standards, rather than a dedicated device for a single specification.
For global electronic manufacturers seeking one-stop compliant solutions from R&D verification to mass production certification, Lab Companion effectively shortens product qualification cycles, ensures consistent and accurate test data, and strengthens core market competitiveness in the global industry.
1. The Final Piece of Laboratory Digital Transformation
Rapid temperature change chambers are one of the most frequently used core devices in R&D and certification processes for automotive electronics, semiconductors, military products and consumer electronics. They are essential for verifying product environmental adaptability and screening structural and process defects. However, most laboratories still rely on traditional offline operation modes, characterized by standalone device control and manual data logging.
This conventional workflow brings obvious limitations. Engineers have to check temperature curves and record test data on-site. Dispersed chamber units cannot be monitored or managed centrally. Test reports require manual sorting and entry, resulting in low efficiency, high human error, poor data traceability and non-standard test procedures. These pain points greatly hinder the standardization and digital upgrading of modern laboratories.
As laboratory informatization and intelligent upgrading accelerate, integrating test equipment into unified digital management platforms has become an industry trend. The Q8® Web User Interface, standardly equipped on Lab Companion Lab Companion EMC shielded rapid temperature change chambers, precisely solves the digital bottlenecks of traditional environmental test equipment. Far beyond a conventional touch display, Q8® transforms temperature chambers into network-enabled, traceable, remotely controllable and AI-powered intelligent terminals. With high-precision control up to 0.01 level and full-process intelligent management, it enables laboratories to shift from labor-dependent operation to data-driven and automatic equipment operation.
This article elaborates on the core advantages and industrial value of the Q8® system from four dimensions: high-precision temperature control, intelligent program management, compliant data traceability and full-scenario remote operation & maintenance.
2. Precision Temperature Control: AI Dual-Algorithm Fusion for Reliable Testing
2.1 Technological Upgrade: From Traditional PID to AI Fuzzy Dual-Algorithm
Temperature accuracy and stability determine the authenticity and repeatability of rapid temperature change tests. Traditional chambers adopt fixed-parameter PID algorithms, which feature poor adaptability. Faced with variable sample heat capacity, ultra-fast temperature variation and ambient interference, conventional controllers commonly suffer from temperature overshoot, response lag and drastic fluctuation, failing to meet stringent high-precision test requirements.
The Q8® intelligent control system adopts a fused AI fuzzy algorithm + dual PID dynamic regulation technology, breaking through the technical limitations of traditional control logic. Mimicking the debugging logic of senior engineers, the system real-time perceives chamber temperature changes, sample heat capacity and external interference, predicts temperature variation trends in advance, and dynamically adjusts cooling and heating output. It realizes predictive temperature regulation and proactive error correction, fundamentally eliminating overshoot, lag and temperature imbalance.
2.2 Three Core Capabilities for Ultimate Temperature Stability
Dynamic Adaptive Control: The AI algorithm captures real-time temperature trajectories, predicts equipment operating status, and optimizes cooling and heating output ratios autonomously. It achieves zero overshoot and zero static error precision control. Combined with the optimized vortex air duct design, the temperature overshoot is controlled within 0.8% for stable and smooth temperature variation.
Intelligent Load Identification & Adaptation: The system automatically identifies the thermal load characteristics of test samples, including high-heat-generating and large-heat-capacity precision components, and matches the optimal control parameters intelligently. Even under complex load conditions, it maintains a standard and stable temperature change rate, preventing sample damage caused by sudden temperature fluctuations and ensuring test compliance.
Full-Range Anti-Interference Compensation: The AI algorithm real-time monitors ambient temperature shifts, power supply fluctuations and equipment operation losses, and activates automatic temperature compensation to offset external errors. It ensures the test data repeatability exceeds 99.5% during long-term continuous operation.
2.3 Industrial-Grade Precision for Versatile High-End Scenarios
Within the ultra-wide temperature range of -70℃ to 150℃, Q8® stably delivers a temperature fluctuation of ≤±0.3℃ and temperature uniformity of ≤±0.5℃. For high-precision scenarios such as semiconductor chips and microelectronic components, the accuracy can be further optimized to ±0.2℃ fluctuation and ±0.4℃ uniformity. It fully meets the strict test standards of consumer electronics, industrial equipment, automotive electronics, military and semiconductor industries.
3. Program Management: Simplified Intelligent Operation Without Complicated Coding
3.1 High-Capacity Programmability for Complex Test Scenarios
The Q8® system supports over 1,200 program segments and a maximum cycle count of 99,999 times, fully adapting to long-duration, multi-stage and high-cycle environmental stress screening. Equipped with a visual graphical editor with drag-and-drop operation, users can freely build customized test procedures including heating, soaking, cooling and cyclic operation, and generate arbitrary temperature-time curves such as linear temperature rise, nonlinear thermal shock, constant temperature and gradient variation.
Compatible with both linear and nonlinear rapid temperature change modes, the system allows flexible customization of temperature change rates, temperature ranges, cycle times and soaking duration. It covers mainstream test applications including conventional temperature cycling, highly accelerated life testing (HALT), extended environmental stress screening (ESS) and high-low temperature shock testing.
3.2 Preloaded Global Standards for One-Click Compliant Testing
To solve the inefficiency and parameter errors caused by manual programming for diverse industrial standards, the Q8® system is preloaded with mainstream global rapid temperature change test templates. Via the 10.4-inch high-definition color touchscreen, users can select the target standard with one click, and the system will automatically load all compliant parameters including temperature range, temperature change rate, cycle times and dwell time, eliminating manual programming and greatly shortening test preparation time.
The built-in standard library covers worldwide authoritative specifications: military standards including GJB 1032 and MIL-STD-2164, automotive electronic standards including full-grade AEC-Q100 (Grade 0~3), and general international standards including GB/T 2423.22 and IEC 60068-2-14, supporting one-stop compliant testing for multiple industries.
3.3 Template Storage & Power-Off Resume for Unattended Operation
The system stores more than 100 sets of commonly used process programs as reusable templates for one-click invocation, greatly improving operational efficiency. It supports timed and delayed startup, enabling 72-hour continuous unattended operation with real-time AI monitoring of equipment status and test progress.
Equipped with a power-off memory function, the system automatically resumes unfinished tests after power recovery without program reset or data loss. It effectively avoids test interruption, sample scrapping and repeated testing, ensuring the continuity and integrity of long-cycle experiments.
4. Data Traceability: Full-Process Recording for CNAS Compliance & Audit
4.1 Second-Level Automatic Data Collection to Build Closed-Loop Data Chains
During the entire test process, the Q8® system automatically collects full-dimensional data including temperature, humidity, equipment operating status, alarm records and operation logs at a minimum 1-second sampling interval, completely replacing manual logging. Data can be saved locally, exported via USB, or uploaded in real time to FTP servers and NAS cloud storage for permanent backup.
The system’s built-in high-capacity storage supports over 100,000 test data records and up to 600 days of historical data retention, meeting long-term traceability, quality review and process optimization demands of enterprises and third-party laboratories.
4.2 Multi-Format Export & One-Click Standard Report Generation
Q8® supports multiple data output formats including CSV raw data, PDF visual reports with temperature curves and Excel structured tables. Users can customize report templates in accordance with CNAS accreditation specifications, enterprise quality management systems and third-party certification requirements. Standardized test reports with complete curves, operation logs and parameter details can be generated with one click, avoiding low efficiency and non-standard issues of manual report making.
All test curves, original data, alarm records and operation tracks are fully retained and traceable, forming a complete closed-loop data system that fully adapts to laboratory quality audits, third-party certification and product quality review scenarios.
4.3 Hierarchical Permission Control for High-Level Compliance Requirements
For CNAS-certified laboratories, precision testing institutions and enterprises with strict compliance demands, the Q8® system provides a complete security and audit tracking system that meets FDA 21 CFR Part 11 requirements. It adopts three-level hierarchical permission management: Administrators have full access to parameter configuration and permission management; Engineers can edit test programs and export data; Operators are only authorized to view status and start/stop tests, ensuring clear authority division and avoiding misoperation risks.
All parameter modifications, program edits, equipment operations and abnormal alarms are fully logged with audit trails. Every operation is traceable and verifiable, ensuring the authenticity, integrity and compliance of test data.
5. Remote Operation & Maintenance: Borderless Intelligent Equipment Management
5.1 Cross-Terminal Web Access for Anytime Remote Monitoring
Built on a pure Web architecture, the Q8® system requires no client software installation or complicated configuration. Users can log in to the control interface via any browser on mobile phones, tablets or computers within the local area network by simply entering the device IP address. It supports real-time monitoring of temperature, humidity, operating status and test progress, remote parameter modification, program start/stop and mode switching, as well as zoomable historical curve viewing and abnormal point marking. It also supports alarm notifications via email and SNMP Trap for instant fault awareness.
For enterprises with multiple factories and distributed laboratories, the system supports remote access via VPN and port mapping, enabling managers to monitor and control equipment status anytime and anywhere without on-site patrols.
5.2 Centralized Multi-Device Management for Efficient Batch Operation
The Q8® centralized management dashboard integrates multiple Lab Companion environmental test equipment into a unified visual interface. It displays the real-time status (running/standby/alarm), current temperature, remaining test time and program progress of all connected chambers at a glance.
Managers can overview the operating status of all devices with one click and access detailed control pages for individual units, eliminating repeated on-site inspections. It significantly reduces multi-device operation and maintenance costs, improves overall laboratory efficiency, and adapts to large-scale and standardized laboratory management.
5.3 Intelligent Fault Diagnosis for Predictive Maintenance
Equipped with an all-round self-inspection and health monitoring module, the Q8® system 24/7 monitors the operating parameters of core components including compressors, temperature sensors, fans and heating units. It adopts AI algorithms to analyze equipment health trends and predict potential faults in advance. A multi-level early warning mechanism triggers reminders via screen pop-ups, message pushes and cloud alarms for risks such as compressor overload and sensor abnormality, with clear fault causes, locations and solutions provided.
Technical personnel can remotely troubleshoot faults, adjust operating parameters and upgrade system firmware, greatly shortening response and repair time. The system upgrades traditional passive fault repair to active predictive maintenance, effectively reducing failure rates and downtime, and extending equipment service life.
6. Value Upgrade: From Hardware Device to Intelligent Laboratory Infrastructure
As the intelligent core of Lab Companion Lab Companion EMC shielded rapid temperature change chambers, the Q8® Web UI has gone beyond the definition of a traditional controller. It serves as an all-in-one intelligent brain integrating AI high-precision control, intelligent program scheduling, compliant data traceability and remote intelligent O&M.
The AI dual-algorithm fusion guarantees ultra-high test precision, preloaded global standards simplify test deployment, full-process data collection ensures audit-ready traceability, and cross-terminal remote management realizes efficient predictive maintenance. Q8® upgrades traditional temperature test chambers from simple hardware execution tools to data-driven, intelligently operated and fully controllable modern intelligent test terminals.
For laboratories undergoing digital transformation, the Q8® system delivers far more than operational efficiency improvement — it provides a complete intelligent test solution. It connects the full data workflow of equipment operation, test execution, data archiving and equipment maintenance, realizing standardized test procedures, compliant data management and intelligent equipment operation. Helping enterprises reduce costs, standardize quality control and boost innovation efficiency, Q8® has become the core intelligent infrastructure for modern laboratory digital upgrading.
1. Common Compliance Sourcing Mistake: Over-specification Causes Unnecessary Cost Waste
When purchasing EMC shielded rapid temperature change test chambers and building compliance qualification systems, most enterprises fall into a typical pitfall — over-specifying equipment and adopting high-end industrial or military standards for general product testing.
The electronics industry features four clear compliance tiers: Consumer, Industrial, Automotive, and Military. Each tier has distinct testing standards, parameter thresholds, and environmental requirements. A one-size-fits-all high-end configuration brings no compliance benefits, but significantly increases capital expenditure, laboratory operation costs, and daily power consumption.
With over 20 years of testing industry experience, Lab Companion provides a scientific tiered compliance matching system. We help companies select fully compliant yet cost-effective equipment, ensuring 100% standard compliance while minimizing overall testing costs.
2. Tiered Compliance Boundaries: Differentiated Testing Requirements
Each product tier corresponds to independent international standards and technical indicators. Clear tier differentiation is the foundation of precise and low-cost compliance:
Consumer Grade (smart home devices, consumer electronic modules)Compliance Standards: IEC 60068, CE, FCCKey Parameters: temperature range -20℃~85℃, temperature change rate 5–10℃/min, shielding efficiency ≥60dBSuitable for basic environmental adaptability and conventional EMC verification for civilian products.
Industrial Grade (industrial sensors, control modules)Compliance Standards: Industrial IEC standardsKey Parameters: temperature range -40℃~100℃, temperature change rate 10–15℃/min, shielding efficiency ≥70dBFocuses on long-term operational stability and durability under industrial working conditions.
Automotive Grade (vehicle electronic components)Compliance Standards: AEC-Q series, ISO 16751Key Parameters: temperature range -40℃~125℃, loaded temperature change rate ≥20℃/min, full-band shielding efficiency ≥80dBDesigned for harsh and dynamic vehicle operating and electromagnetic environments.
Military Grade (defense and high-reliability components)Compliance Standards: GJB, MIL-STD seriesKey Parameters: temperature range -70℃~180℃, rapid temperature change rate ≥25℃/min, high-level shielding efficiency ≥90dBMeets extreme temperature impact and strong electromagnetic interference test requirements for mission-critical equipment.
3. Double Cost Loss Caused by Non-tiered Sourcing
Blind equipment selection leads to two major cost risks that widely exist in the industry.
Many enterprises purchase automotive or military-grade high-spec chambers for consumer and industrial product testing. This over-specification increases procurement costs by 40%–60%. Meanwhile, high-end chambers consume more power and require more complex maintenance, resulting in continuously high long-term operation costs and severe resource idleness.
In contrast, some companies choose underrated equipment for high-grade product certification. Substandard technical parameters lead to invalid test data and certification failures. The subsequent repurchase and retesting generate secondary costs, including time loss, certification delays, and repeated labor costs.
The core value of Lab Companion’s tiered compliance solution is to eliminate double waste: over-investment for low-tier products and non-compliance risks for high-tier products.
4. Lab Companion Tiered & Modular EMC Chamber Solutions
Lab Companion launches professional tiered EMC shielded rapid temperature change chamber series, precisely matching the four product compliance levels to achieve accurate performance matching and optimal cost control.
Consumer Grade SolutionOptimized and simplified redundant high-end functions while retaining all required parameters for CE and FCC certification. It reduces procurement and operation costs by 35% and fully meets daily compliance testing demands for consumer electronics.
Industrial Grade SolutionEnhanced loaded operation stability and long-running durability. It adapts to continuous industrial condition testing and provides higher cost performance than universal standard chambers.
Automotive Grade SolutionEquipped with standard 25℃/min loaded temperature change, 80dB full-band shielding, and real-time dynamic parameter monitoring. It fully meets the rigid indicator requirements of mainstream automotive certification standards.
Military Grade SolutionAdopts military-grade cavity structure and high-efficiency refrigeration systems, supporting ultra-wide temperature range, ultra-fast temperature cycling, and high electromagnetic shielding performance to comply with strict MIL-STD and GJB standards.
5. Full Lifecycle Cost Optimization & Global Technical Support
To support long-term cost control and product iteration, Lab Companion adopts a modular upgrade design for all chambers. Clients can upgrade temperature change rate, shielding level, data acquisition system, and other functions on demand without replacing the entire machine, effectively avoiding repeated high investment for equipment iteration.
In consideration of global service characteristics, no on-site door-to-door maintenance is provided for overseas regions. Instead, we provide professional online guidance and remote technical support throughout the product lifecycle. Customized tiered maintenance guidance helps customers avoid excessive maintenance costs and further optimize laboratory operating expenses.
Conclusion
Smart compliance relies on accurate matching rather than excessive configuration. Lab Companion’s tiered compliance system, modular equipment design, and full-lifecycle cost optimization services effectively solve the industry’s over-specification and non-compliance problems. We help global enterprises achieve standard-compliant, cost-effective, and efficient laboratory operation, supporting steady business growth with reliable and economical testing solutions.
In 2026, Avoid Price and Brand-biased Test Chamber Selection
As semiconductor manufacturing scales down to 3nm and below, reliability testing standards for AI chips, automotive-grade semiconductors and high-speed optical modules have become increasingly stringent. Thermal cycling chambers, rapid temperature change chambers and thermal shock chambers now play a critical role across the entire product lifecycle, from wafer design verification and package testing to mass production quality screening. The accuracy and stability of these chambers directly determine the validity of test data and product time-to-market.
However, global procurement teams still rely heavily on brand reputation or manufacturer datasheet nominal parameters when making purchasing decisions. This outdated selection method leads to frequent post-purchase risks: off-spec temperature performance under loaded conditions, poor compatibility with customized test workflows and delayed technical support. Instead of superficial indicators, buyers should evaluate suppliers from four practical dimensions: real-world loaded performance, full-range product portfolio, customized integration capability, and global remote after-sales support.
With over 20 years of experience in environmental reliability testing equipment, Lab Companion has served more than 10,000 industrial clients worldwide. Drawing on our flagship TC-series rapid temperature change chambers and TS3-series three-zone thermal shock chambers, this article outlines a standardized, buyer-centric evaluation framework to guide high-tech manufacturing and semiconductor companies in data-driven equipment selection.
Dimension 1: Core Technical Performance — Loaded Operating Conditions Determine Test Credibility
Datasheet-only performance data often deviates drastically from actual on-site operation. Five interconnected technical indicators must be verified under loaded conditions to comply with JEDEC, SEMI and ISO international testing standards.
1. Full Temperature Range Coverage
Semiconductor components require differentiated temperature envelopes based on application scenarios. Consumer-grade ICs typically require a range of -40℃ to +125℃, while AEC-Q100 automotive chips mandate -70℃ to +150℃. Aerospace and military-grade bare chips demand extended extreme ranges up to -80℃ to +200℃ to pass third-party qualification audits.
All standard Lab Companion rapid temperature change chambers support a stable temperature range of -70℃ to +150℃ for continuous 24/7 operation. Custom deep-cooled models extend coverage to -80℃ to +200℃. Our portfolio covers compact 180L units and mainstream capacities including 150L, 225L, 408L and 800L, with no temperature drift or forced defrost downtime under extreme thermal cycling.
2. Load-regulated Temperature Change Rate
Temperature ramp rate is the primary performance metric for rapid thermal cycling tests. A widespread industry pitfall is inflated no-load ramp parameters: many suppliers advertise 20℃/min ramps that drop by over 50% once heat-generating test samples are loaded.
Lab Companion TC-series chambers offer five adjustable linear ramp rates: 5℃/min, 10℃/min, 15℃/min, 20℃/min and 25℃/min, with one-click switching between linear and non-linear ramp modes. All contractual parameters explicitly specify loaded ramp performance rather than no-load figures. In a deployment with a global AI chip developer, our loaded 20℃/min ramp capability cut full-range thermal cycling test duration from 4 days to 1 day. The chambers maintain ±0.1℃ temperature resolution and ±0.3℃ transient temperature fluctuation across all operating scenarios.
3. Temperature Uniformity and Stability
For high-precision components such as coherent optical modules and sub-3nm chips, minor temperature inconsistencies inside the chamber cause inconsistent batch test results and failed CNAS data traceability audits. The international standard IEC 60068 requires temperature uniformity within ±1.0℃, while advanced semiconductor testing demands stricter tolerances.
Powered by the in-house Q8 intelligent control system with dual-PID regulation and AI fuzzy disturbance compensation, Lab Companion chambers deliver sustained performance of ±0.3℃ temperature fluctuation and ±0.5℃ internal temperature uniformity across the full -70℃ to +150℃ range. This meets testing requirements for quantum chips and millimeter-wave semiconductor components with ultra-tight tolerance limits.
4. Dynamic Thermal Load Adaptation
Unlike passive industrial test samples, operational semiconductor chips generate variable real-time heat output, shifting from low standby power to high peak power within seconds. Traditional single-PID controllers fail to offset dynamic internal heat loads, triggering temperature overshoot and permanent damage to bare dies.
The Q8 control system integrates high-frequency thermal load sensors that monitor sample heat dissipation 10 times per second. It automatically adjusts refrigeration airflow and cooling capacity without manual intervention. Auxiliary environmental disturbance compensation offsets fluctuations in ambient room temperature and grid voltage, ensuring 99.5% repeatability for batch production test datasets.
5. Dew Point Control and Condensation Prevention
Condensation during rapid temperature transitions causes BGA pad short circuits, gold finger oxidation and irreversible component failure. All Lab Companion chambers adopt seamless 304 mirror stainless steel interiors for dust-free operation. Optional dry nitrogen purging lowers internal dew points below -40℃, eliminating condensation and oxidation risks during high-acceleration thermal cycling. The sealed internal structure also complies with ISO 14644 cleanroom deployment rules.
Dimension 2: Scalable Product Portfolio — R&D to Mass Production Compatibility
Inconsistent testing equipment across R&D, pilot and mass production stages breaks data traceability, one of the top pain points for global semiconductor labs. Disparate control algorithms from different vendors lead to incomparable test results and extended qualification cycles.
Lab Companion provides a fully scalable equipment lineup covering bench-top 34L compact chambers to 16m³ walk-in environmental rooms. The TS3 three-zone thermal shock chamber adopts physically isolated hot and cold zones to prevent cross-contamination of internal airflow, optimized for fragile optical and semiconductor components. Specialized variants including battery explosion-proof chambers complete coverage for electronic components, circuit assemblies and full-size automotive modules. All devices share unified control logic, data export protocols and calibration standards for cross-stage data consistency.
Dimension 3: Customized Hardware and Software Integration Capability
Over 80% of semiconductor reliability projects require non-standard modifications rather than off-the-shelf equipment. Common custom requirements include SEMI-compliant cleanroom interface adaptation, automatic docking with ATE testers and probe stations, reserved automated material handling ports, and extended extreme temperature envelopes.
Lab Companion delivers fully integrated custom solutions with an average lead time of 60 days, far shorter than the global industry average of 90–120 days. For a global power semiconductor manufacturer, we redesigned internal airflow and refrigeration loops within a 100L chamber to achieve -60℃ to +160℃ loaded thermal cycling at 15℃/min, with temperature uniformity locked at ±0.3℃. All standard units are pre-fitted with RJ45 and RS485 communication ports for native LIMS and MES system integration, eliminating third-party adapter compatibility risks.
Dimension 4: Global Remote Lifecycle Technical Support
On-site on-demand after-sales service is not standard practice for cross-border industrial equipment suppliers due to regional regulatory, logistics and labor restrictions. Lab Companion provides a 100% remote-first global support system tailored for overseas clients, with no mandatory on-site maintenance included in standard warranties.
Our global remote support team operates across 6 time zones with 24/7 ticket response. Technicians conduct real-time system diagnosis, parameter recalibration, firmware upgrades and fault troubleshooting via encrypted cloud remote access. For replaceable consumables and core spare parts, we maintain regional spare part warehouses in North America, Europe and Southeast Asia, with standard international shipping delivery within 3–5 working days.
Post-delivery remote services include virtual commissioning, recorded operator training, annual remote calibration guidance and lifelong firmware updates. All support documents, operation manuals and compliance certificates are provided in English, German, Japanese and simplified Chinese to align with regional industrial regulatory requirements.
Final Selection Guidelines for Global Buyers
For 2026 cross-border environmental test chamber procurement, prioritize evaluation criteria in the following order, ignoring superficial brand influence and low-price tenders:
1. Loaded performance first: Verify ramp rate and temperature uniformity under actual sample load, not only datasheet no-load data
2. Cross-stage compatibility: Select suppliers with unified control systems for R&D and mass production equipment
3. Integration customization: Confirm native digital interface compatibility rather than post-purchase retrofitting
4. Remote support reliability: Audit time zone coverage and spare part logistics instead of on-site service commitments
Lab Companion’s unified global product standards, AI-powered temperature control and timezone-adapted remote support match the compliance and operational demands of automotive, semiconductor and aerospace clients worldwide.
Dual Threats to 5G Base Stations: Internal Heat Accumulation & Extreme Ambient Temperature Fluctuations
Global large-scale 5G deployment and vertical industry integration are accelerating. Shenzhen hosts 442 5G upstream and downstream enterprises, the largest cluster worldwide, with local 5G applications covering 91 categories of national economic sectors. Despite robust industrial growth, thermal reliability defects have become a top risk for outdoor 5G infrastructure long-term operation.
Compared with 4G counterparts, 5G macro base stations adopt massive MIMO antenna arrays and GaN high-power RF amplifiers, driving a sharp surge in power consumption. Field data shows RF front-end power density of 5G devices is over 3 times higher than 4G, with local heat flux exceeding 300W/cm² and instantaneous component surface temperatures hitting 120°C — far beyond the 85°C safe operating threshold for telecom hardware. Beyond internal heat generation, outdoor deployment exposes base stations to harsh cross-climate conditions: units operate 24/7 across -40°C to +85°C, enduring cyclic thermal stress from diurnal temperature swings and seasonal climate shifts that degrade circuit boards, solder joints and waterproof seals over time.
Combined thermal overload and rapid temperature cycling trigger cascading failures. Minor issues include RF gain attenuation, signal phase distortion and unstable data throughput. Severe faults cover chip thermal throttling, solder joint fatigue cracking and partial antenna failure, ultimately causing base station outages. As a result, standardized environmental simulation testing equipment that replicates real-world outdoor thermal conditions has become mandatory for 5G R&D, validation and mass production quality control.
Founded in 2005, Lab Companion (Guangdong Hongzhan Technology) specializes in R&D and manufacturing of environmental reliability testing systems. Its TC-series rapid thermal change chambers are widely deployed in 5G RF modules, high-speed optical transceivers and semiconductor packaging worldwide. This paper analyzes how Lab Companion addresses 5G thermal reliability challenges from industrial pain points, core product capabilities, global application cases and overseas remote service frameworks.
1. Industry Pain Points: Outdated Testing Solutions Fail Updated Telecom Standards
5G overheating risks stem from fundamental architectural upgrades. Massive MIMO expands antenna channels from 8 (4G) to 64/128 for 5G, while mainstream GaN power amplifiers push AAU power consumption to 1000W-1500W. Legacy passive heat sinks and basic air cooling designed for 4G lack sufficient thermal margin, making them unable to verify structural durability under rapid thermal cycling.
International and regional telecom standards have tightened reliability benchmarks. Per YD/T 3627-2023 and YD/T 4110-2022 (globally recognized reference standards for 5G hardware), outdoor AAUs require long-term thermal-humidity endurance testing from -40°C to +70°C with temperature fluctuation accuracy within ±0.5°C. Mandatory rapid thermal shock tests are also required to validate BGA solder joints, RF connectors and sealing performance under minute-level temperature transitions.
Conventional temperature cycling chambers feature fixed ramp rates and poor temperature uniformity, failing to meet updated compliance requirements. The global telecom supply chain demands scalable, high-precision rapid thermal change systems with flexible configuration capabilities.
2. Core Advantages of Lab Companion TC-Series Rapid Thermal Change Chambers
Customized for passive and active telecom component validation, all TC-series units hold CE certification for global shipment. The portfolio covers 9 standard chamber volumes ranging from 34L to 1500L, supporting testing for discrete RF chips, compact optical transceivers and integrated small-cell base stations to cover full-scale component and finished-product validation.
2.1 Modular Ramp Rate Configuration to Avoid Over-Engineering
Different 5G components show divergent thermal sensitivity. The TC series supports both linear and non-linear temperature ramp rates from 5°C/min to 25°C/min across five adjustable tiers. Non-linear ramp modes prioritize internal cavity temperature uniformity, ideal for batch screening of passive antenna arrays. Linear ramp modes comply strictly with JEDEC solid-state component specifications, eliminating hidden component damage caused by abrupt temperature shifts for RF baseband chips and high-speed optical modules.
Thanks to modular refrigeration architecture, users can upgrade ramp performance via add-on refrigeration modules without full equipment replacement when testing standards update. For extreme low-temperature scenarios including 5G millimeter-wave component validation, optional liquid nitrogen auxiliary cooling kits are available to break mechanical refrigeration speed limits for automotive and military-grade telecom compliance.
2.2 Ultra-Wide Temperature Range for Global Climate Replication
5G base stations are deployed across Arctic cold zones, arid inland regions, humid coastal areas and high-altitude plateaus, with cross-regional temperature differentials exceeding 100°C. The TC series delivers a core temperature range of -70°C to +150°C, providing ample testing redundancy beyond the -40°C to +85°C standard requirement for mainstream 5G hardware. The matched TH-series combined temperature-humidity chambers offer 20%RH to 98%RH humidity regulation, replicating high-temperature high-humidity conditions for 85°C/85%RH long-term aging tests required for coastal outdoor telecom infrastructure.
2.3 Dual Cascade Refrigeration: High Precision with Low Energy Consumption
Unlike single-stage refrigeration used by generic competitors, TC chambers adopt dual cascade refrigeration loops with environmentally compliant refrigerants: zero-ODP R23 for low-temperature circuits and low-loss R404A for high-temperature circuits. Paired with Copeland and Danfoss hermetic dual-stage compressors, the system cuts energy consumption by 18% under identical thermal ramp conditions. Nickel-chromium alloy heating tubes ensure uniform heat distribution, while dual PID collaborative control eliminates temperature overshoot and drift.
The multilingual touchscreen interface simplifies parameter configuration, with built-in power-off recovery, automatic calibration and scheduled startup functions to support unattended 24/7 lab operation, a core requirement for overseas automated testing labs.
2.4 Cloud-Based Intelligent Monitoring for Traceable Test Data
Powered by Lab Companion proprietary fuzzy PID algorithms, the chambers maintain temperature fluctuation within ±0.5°C and spatial deviation within ±2°C, fully meeting international telecom calibration standards. Local storage retains 5+ years of temperature curves and fault logs with exportable Excel/PDF reports for ISO 17025 and CNAS audit compliance. Built-in Ethernet connectivity enables cloud remote monitoring: global clients can remotely start/stop tests, view real-time thermal data and receive fault alerts via desktop or mobile terminals. The system features 32 automatic fault diagnosis protocols with multilingual troubleshooting prompts to accelerate on-site staff resolution without manual manuals.
3. Global Field Application Cases Across the 5G Supply Chain
3.1 RF Front-End Module R&D Validation
RF front-end modules directly determine 5G signal stability. A global leading massive MIMO antenna supplier adopted Lab Companion TC-100L chambers to conduct -55°C to +125°C rapid thermal cycling and 1000-hour 85°C/85%RH aging tests per YD/T 4110-2022. Uniform cavity thermal conditions identified hidden failures including adhesive delamination and gold-plated connector oxidation before mass production. Post-test verification confirmed frequency error within ±0.04ppm and output power fluctuation below ±2.2dB, meeting global operator access specifications.
3.2 Integrated Small-Cell Base Station Mass Screening
Outdoor small cells face severe diurnal thermal swings in urban and roadside deployments. A Southeast Asian telecom integrator deployed TC-340L chambers for 500+ cycles of -40°C to +70°C thermal shock testing to simulate 5 years of outdoor operating stress. Repeatable high-precision temperature control eliminated early failures of motherboard solder joints and power capacitors, reducing field failure rates from 1.2% to 0.27% for shipped units.
3.3 800G/1.6T High-Speed Optical Transceiver Testing
Laser chips in next-gen optical transceivers show extreme thermal sensitivity, with minor temperature shifts triggering code errors and optical power attenuation. Lab Companion compact TC models are widely used by transceiver manufacturers across Europe and Southeast Asia. Standard 10°C/min linear thermal cycling from -40°C to +85°C verifies extinction ratio, receiver sensitivity and bit error rate stability for cabinet-mounted transceivers operating without active cooling.
4. Overseas Service Framework: Remote-Only Support for Global Clients
Lab Companion does not provide on-site door-to-door maintenance for overseas clients, complying with cross-border logistics and local labor regulatory restrictions. We deliver full-lifecycle remote technical support covering all overseas regions, with standardized global service rules:
• Warranty Coverage: 1-year global comprehensive warranty for labor and standard components; 3-year extended warranty for core components including compressors and main control boards, with lifelong free remote technical consultation.
• In-Warranty Support: Unlimited multilingual remote video guidance for installation, calibration, routine maintenance and fault diagnosis; free digital firmware updates and electronic operation manuals. No on-site dispatch is included in overseas warranty packages.
• Post-Warranty Support: Transparent component pricing with no hidden fees. All spare parts are shipped from overseas bonded warehouses with standardized international logistics lead times.
• Remote Response SLA: 2-hour response window for urgent technical inquiries via email, video call and dedicated customer portal; detailed remote troubleshooting reports delivered within 12 working hours.
5. Future Outlook: 5G-A and 6G-Oriented Testing Innovation
Global telecom networks are transitioning to 5G-A commercial deployment, with 6G millimeter-wave, integrated sensing and communication (ISAC) technology under active R&D. Millimeter-wave antennas will see heat flux exceeding 500W/cm² and wider thermal tolerance ranges, driving demand for combined thermal-vibration environmental testing.
Lab Companion will prioritize two core upgrades for global clients: low-carbon refrigeration optimization to align with EU carbon border adjustment regulations, and combined thermal-shock-vibration testing systems for 6G ISAC hardware. We will continue to deliver high-precision, scalable and low-energy environmental simulation solutions, supporting global telecom manufacturers to improve long-term device reliability across cross-climate deployments.
1. Challenges of Automotive Chip Testing & Importance of AEC-Q100 Standard
Driven by the rapid growth of the global new energy vehicle industry, automotive-grade chips are deployed in increasingly complex application scenarios. Widely adopted in battery management systems, ADAS domain controllers, in-vehicle infotainment, and vehicle stability modules, automotive chips must maintain stable performance throughout the vehicle’s service life under extreme temperature fluctuations, continuous mechanical vibration, and long-term humid environments.
Among all reliability stresses, thermal shock is one of the leading causes of chip packaging failure, wire bond fracture, and solder joint cracking. To unify reliability requirements for automotive electronic components, the Automotive Electronics Council (AEC) established the AEC-Q100 standard, which has become a globally recognized benchmark for automotive component qualification.
The standard clearly defines temperature transition rates, cycle counts, dwell time, and failure judgment criteria for thermal shock testing. Strict and precise thermal shock testing is a mandatory prerequisite for chips to obtain vehicle-grade certification.
With rich expertise in environmental test equipment, Lab Companion has developed professional thermal shock test chambers to address the stringent reliability testing demands of automotive chips. Fully compliant with AEC-Q100 specifications, our equipment delivers high-precision temperature control, fast thermal response, and long-term operational stability, serving new energy vehicle manufacturers and tier-1 suppliers across global markets.
2. Core Technical Advantages of Lab Companion Thermal Shock Test Chambers
2.1 Dual / Triple Zone Structure for Ultra-Fast Thermal Transition
AEC-Q100 requires test samples to switch rapidly between high and low temperature extremes. Lab Companion thermal shock chambers adopt a pneumatic dual or triple independent zone structure. Equipped with insulated partitions and a high-speed sample transfer mechanism, the system completes sample zone conversion within 5–10 seconds.
Unlike traditional single-chamber temperature cycling systems that suffer from air mixing and temperature cross-contamination, our isolated zone design delivers pure and effective thermal shock stress. The equipment stably supports classic AEC-Q100 test conditions, including -40℃～125℃ and -55℃～150℃. Even under full load conditions, the chamber maintains standard-compliant temperature conversion speed, accurately simulating real-world vehicle conditions such as extreme heat soaking, cold start, and rapid temperature fluctuation.
2.2 High Precision Temperature Control & Low Long-Term Drift
Temperature deviation during testing may lead to invalid results, causing misjudgment of chip qualification. Lab Companion integrates adaptive PID algorithms and high-precision platinum resistance sensors, controlling temperature fluctuation within ±0.5℃ in both high and low temperature zones.
By optimizing the matching of refrigeration and heating power, the equipment ensures temperature drift ≤2% after 500+ hours of continuous operation. This outstanding stability guarantees consistent and repeatable test results for batch chip qualification.
2.3 Intelligent Anti-Condensation & Auto Defrost Control
When samples transfer from high-temperature zones to low-temperature zones, instantaneous surface condensation may occur, which is prohibited by AEC-Q100 to avoid circuit short-circuit and corrosion failures. Lab Companion equips each chamber with a dry air purging system and intelligent defrost logic.
The targeted airflow design keeps sample surface temperature above the dew point without liquid condensation. Meanwhile, the system automatically adjusts defrost cycles based on operating status, ensuring uninterrupted test loops and fully compliant test environments.
2.4 Complete Data Traceability & Remote Monitoring
To meet standardized batch testing requirements, Lab Companion thermal shock chambers come with built-in Ethernet communication and professional PC software. The system records real-time data of each thermal shock cycle, including temperature curves, sample status, dwell duration, and equipment operating parameters.
All data is encrypted and tamper-proof, fully complying with the data traceability requirements of ISO 16753 and AEC-Q100. Users can remotely monitor equipment status via local network and receive instant alerts via email and SMS in case of abnormal conditions, greatly improving test efficiency and controllability.
3. Full Compliance with AEC-Q100 Thermal Shock Test Specifications
AEC-Q100 temperature cycling (TC) and early-life thermal stress tests are core items for automotive chip certification. Lab Companion test chambers fully cover Grade 0 to Grade 4 automotive chip test requirements through comprehensive technical capabilities.
Full Temperature Coverage: The chamber supports a wide temperature range of -70℃～200℃, completely covering standard requirements of -50℃～125℃ and extreme -65℃～150℃ test conditions for all automotive chip grades.
Precise Dwell Time Control: Independent high/low temperature dwell time setting with an accuracy of ±30 seconds, fully meeting the standard requirement of a minimum 10-minute dwell time at extreme temperatures.
High-Cycle Durability: The equipment supports more than 2000 consecutive thermal shock cycles, far exceeding the standard 500–1000 cycle requirements, ensuring long-term stable batch testing.
Real-Time Sample Temperature Monitoring: Optional wireless temperature sensors attach directly to chip surfaces to monitor actual sample temperature, ensuring the temperature difference between air and sample remains within the 10℃ tolerance specified by AEC-Q100.
All equipment can be calibrated by third-party authoritative institutions to provide CNAS-certified calibration reports, supporting customers’ IATF 16949 audits and official automotive certification processes.
4. Global Application in New Energy Vehicle Reliability Testing
Lab Companion thermal shock test chambers are widely adopted by new energy vehicle manufacturers, semiconductor design companies, and tier-1 automotive component suppliers. Our equipment serves core automotive industry clusters with standardized and customized thermal shock testing solutions for motor control chips, BMS chips, and ADAS chips.
4.1 ECU Controller Chip Qualification (1000-Cycle Thermal Shock Verification)
A tier-1 automotive electronic supplier needed to verify IGBT driver chips for vehicle motor controllers, requiring AEC-Q100 Grade 1 certification (-40℃～125℃, 500 cycles). With Lab Companion dual-zone thermal shock chambers, the customer completed full-process qualification, including preconditioning, continuous thermal shock testing, and final electrical parameter verification. The equipment operated stably for 7 consecutive days without over-limit alarms, helping the chip pass automotive certification and achieve mass production approval.
4.2 Extreme BMS Chip Testing (-55℃～150℃ High-Grade Verification)
A new energy battery manufacturer required its BMS front-end chips to meet AEC-Q100 Grade 0 standards (-55℃～150℃, 1000 cycles). Lab Companion provided a customized triple-zone thermal shock chamber with an expanded sample basket, supporting 200 chips per test batch and significantly shortening the certification cycle. Equipped with an enhanced low-humidity protection function, the equipment effectively avoids condensation risks during extreme high-low temperature switching, ensuring valid and reliable test results.
4.3 Global Online Technical Support & Stable After-Sales Service
To adapt to global customer demands, Lab Companion provides worldwide online technical support. Our professional engineering team offers remote equipment commissioning, operational guidance, parameter calibration, and fault diagnosis services. Without on-site maintenance dependence, customers can obtain fast and professional technical responses globally, ensuring continuous and stable test operation.
5. Key Criteria for Selecting Automotive-Grade Thermal Shock Test Chambers
When purchasing AEC-Q100 compliant test equipment, manufacturers should evaluate comprehensive performance rather than focusing merely on initial procurement cost. Lab Companion recommends five core evaluation dimensions:
1. Standard Compliance: Verify whether the equipment can provide complete test data curves that meet AEC-Q100 and JESD22 standards, along with official third-party calibration certificates for audit support.
2. Full-Load Test Performance: Ensure the chamber can recover to set temperature within 5 minutes under full sample load conditions, avoiding inconsistent performance between no-load and loaded tests.
3. Long-Term Operational Reliability: Adopt high-quality core configurations including imported fully hermetic compressors, durable heating elements, and dynamically balanced fans to support long-term high-frequency cyclic testing.
4. Secure & Traceable Test Data: Support tamper-proof data storage and timestamp-embedded PDF/CSV data export to meet automotive-grade data archiving and traceability requirements.
5. Professional Global Technical Support: Equipped with a professional remote engineering team to provide 24/7 online guidance, equipment debugging, training, and technical troubleshooting for global users.
6. Conclusion & Future Outlook
Automotive chip reliability is the fundamental guarantee for safe and stable operation of new energy vehicles. High-standard thermal shock testing is an indispensable step in automotive-grade certification and mass production quality control.
As a professional global provider of environmental test solutions, Lab Companion delivers fully AEC-Q100 compliant, high-precision, and high-stability thermal shock test chambers. With in-depth standard mastery, mature core technology, and reliable global online support, we help global new energy vehicle and semiconductor customers accelerate certification progress and improve product reliability.
Looking ahead, with the widespread adoption of 800V high-voltage platforms and SiC automotive chips, future thermal shock test conditions will become more extreme, featuring wider temperature ranges and higher cycle counts. Lab Companion is actively researching next-generation ultra-fast temperature transition technology and plans to launch a new generation of high-end thermal shock chambers by 2027, continuing to empower the high-quality development of the global new energy vehicle industry.
Introduction: New Reliability Challenges for MEMS Sensors
As a core cluster of the domestic MEMS sensor industry, Suzhou Nano City hosts more than 550 upstream and downstream enterprises and operates China’s first commercial 6-inch MEMS pilot platform. It has formed a complete industrial chain covering chip design, wafer manufacturing, packaging and testing. Driven by the rapid development of IoT, smart vehicles, aerospace and advanced industrial manufacturing, MEMS sensors are evolving toward higher integration, miniaturization and stricter operating conditions.
Against this backdrop, how to quickly and accurately identify latent defects in MEMS sensor design, material selection and production processes has become a universal industry challenge. To address this demand, Lab Companion has launched the HALT-type high-accelerated thermal cycling chamber. Featuring an ultra-high non-linear temperature change rate of up to 20℃/min, the equipment drastically shortens reliability testing cycles and exposes hidden early failures at the R&D stage, helping global MEMS manufacturers consolidate product quality.
1. High-Accelerated Thermal Cycling Testing: Break Traditional Limits for Extreme Reliability Verification
1.1 What is HALT Testing
HALT (Highly Accelerated Life Test) is an advanced reliability verification method applied in the electronic product R&D phase. Its core principle is maintaining consistent failure mechanisms, intensifying environmental stress, and compressing test duration. By applying extreme thermal cycling and temperature shock stress, HALT rapidly excites potential product weaknesses. Short-term accelerated test data can accurately predict product long-term reliability under standard operating conditions, serving as a critical validation solution before formal product finalization.
1.2 Why MEMS Sensors Require HALT Ultra-Fast Thermal Cycling
Integrated with micro-mechanical structures (cantilevers, thin films, resonant cavities) and precision signal processing circuits, MEMS sensors are far more sensitive to thermal stress and thermal expansion/contraction than conventional electronic components. Standard thermal cycling tests fail to effectively trigger latent failures. The main failure modes of MEMS sensors are summarized as follows:
• Microstructure Fatigue & Fracture: Repeated temperature fluctuations induce fatigue cracks on micro-cantilevers and resonant structures, leading to functional degradation over service time.
• Microstructure Adhesion & Friction Failure: Rapid thermal stress causes irreversible adhesion and stalling of micro-scale structures, undermining sensing accuracy.
• Packaging Thermal Stress Mismatch: Differential thermal expansion coefficients among chips, encapsulation materials and substrates cause stress concentration, resulting in packaging delamination and cracking.
• Interconnection & Solder Joint Failure: Extreme temperature shocks generate microcracks in internal solder joints and circuit interconnections, eventually causing poor contact or open circuits.
Conventional thermal cycling chambers only provide a temperature change rate of 1～3℃/min, requiring several hours for a single complete cycle. Such low stress intensity cannot efficiently expose micro latent defects. In contrast, Lab Companion high-accelerated thermal cycling chambers deliver a temperature change rate of over 10℃/min, enabling extreme high-low temperature switching in a short time. The intensified thermal stress effectively exposes design, material and process flaws, supporting iterative optimization before mass production and eliminating batch failure risks.
2. Core Technical Advantages of Lab Companion High-Accelerated Thermal Cycling Chambers
With years of expertise in environmental reliability testing equipment, Lab Companion independently developed the high-accelerated thermal cycling chamber series. It fully adapts to the full-cycle testing requirements of MEMS sensors from R&D verification to mass screening, solving traditional industry pain points including low efficiency, insufficient precision, contamination risks and incomplete data traceability.
2.1 Customizable Ultra-High Temperature Change Rate, 4X Higher Testing Efficiency
The equipment supports customizable linear and non-linear temperature change rates ranging from 5℃/min to 25℃/min, with top-tier models reaching 25℃/min — far exceeding conventional industry equipment. Taking the mainstream -40℃～125℃ thermal cycle test as an example, traditional devices take 2 hours per cycle, while Lab Companion chambers complete one cycle within 30 minutes. The solution achieves 4 to 5 times more cycles in the same testing period, efficiently stimulating latent failures such as microstructure fatigue and packaging stress defects. Users can freely switch between constant linear temperature change and segmented controllable non-linear acceleration modes according to diverse test standards.
2.2 Wide Temperature Range & High-Precision Control for Batch Test Consistency
Covering a full temperature range of -70℃ to +180℃, the chamber meets all-scenario MEMS testing demands including low-temperature cold start, normal operation, high-temperature storage and extreme temperature resistance. Equipped with a dual-air duct circulation system and distributed multi-point temperature sensors, it achieves a steady-state temperature uniformity of ≤±0.5℃ and dynamic uniformity better than ≤2.0℃ during rapid temperature changes. The balanced and precise thermal field supports synchronous batch testing of multiple MEMS sensors, eliminating data deviation caused by local temperature differences and ensuring highly reliable and consistent test results.
2.3 High-Cleanliness Chamber Design for Precision Chip Testing
MEMS bare dies and micro sensors are extremely sensitive to test environment cleanliness. Tiny dust and particle adhesion may cause test misjudgment or irreversible component damage. Lab Companion optimizes the chamber structure specifically for precision semiconductor testing scenarios. Adopting SUS304 mirror stainless steel inner tank and dead-angle-free arc welding technology, the inner wall minimizes particle adhesion and shedding risks. It perfectly adapts to high-precision scenarios such as wafer-level packaging and bare die testing, ensuring authentic test data and stable product yield.
2.4 Intelligent Programmable Control & Full-Cycle Data Traceability
Equipped with a self-developed high-definition programmable controller with bilingual (Chinese/English) interface, the device stores 100 groups of programs with 100 segments per group. It supports one-click calling of mainstream industry standards including JEDEC, MIL-STD and AEC-Q100, realizing unattended automatic testing. Integrated with Ethernet remote monitoring and USB data export functions, the chamber synchronizes real-time temperature curves, operating status and alarm information. All test data is automatically recorded, fully complying with data traceability requirements of IATF 16949 and ISO 17025 quality systems.
3. Typical Application Cases
Case 1: Extreme Thermal Stress Verification for MEMS Inertial Accelerometers
A professional IMU inertial sensor enterprise requires its vehicle-grade MEMS accelerometers to withstand harsh automotive operating conditions. At the product finalization stage, the enterprise adopted Lab Companion high-accelerated thermal cycling chamber with the test scheme: -55℃～+125℃ temperature range, 20℃/min non-linear temperature change rate, 10-minute dwell time per segment, 200 consecutive cycles.
The intensive alternating thermal stress quickly activated latent defects and exposed fatigue cracks on microstructure fixing anchors within 100 cycles. Based on failure analysis, the enterprise optimized the stress relief groove design of microstructures. Re-testing verified the complete elimination of similar failures, greatly improving the product’s thermal shock resistance and operational stability under extreme vehicle conditions.
Case 2: Temperature-Humidity Combined Accelerated Test for Smartphone MEMS Microphones
A professional acoustic module manufacturer encountered abnormal acoustic sensitivity attenuation of new-generation smartphone MEMS microphones under high-temperature and high-humidity environments. Traditional long-period humidity and temperature tests failed to quickly locate the root cause.
The enterprise adopted Lab Companion temperature-humidity composite high-accelerated thermal cycling chamber with combined thermal and humidity stress. The test parameters were set as15℃/min temperature change rate, 10%～95% RH humidity range and 50 test cycles. The accelerated test quickly confirmed that alternating rapid temperature and humidity fluctuations caused expansion and deformation of the waterproof and breathable membrane, resulting in sealing performance degradation. The manufacturer replaced the membrane with high humidity-resistant material, thoroughly solving the acoustic sensitivity failure and achieving rapid product iteration.
Case 3: Mass Stress Screening for Automotive-Grade MEMS Pressure Sensors
A leading automotive sensor supplier produces tire pressure monitoring MEMS pressure sensors that comply with strict AEC-Q100 automotive standards, requiring efficient batch defect screening during mass production.
The enterprise introduced Lab Companion high-accelerated thermal cycling chambers for mass production screening. The equipment supports simultaneous testing of 500 sensors per batch. With the test condition of -40℃～125℃ and 20℃/min ultra-fast temperature change, the original 24-hour screening cycle is shortened to 4 hours. The internal temperature uniformity is stably controlled within ±1.5℃, ensuring consistent thermal stress for all samples. This solution increases the defective product detection rate by 30% and reduces comprehensive screening costs by nearly 50%, balancing high screening accuracy and mass production efficiency.
4. Global Professional After-Sales & Technical Support
Lab Companion provides standardized global after-sales service and full-lifecycle technical support for overseas customers, ensuring stable and efficient equipment operation worldwide:
• Global Online Technical Support: Professional engineering teams provide 7×24-hour remote guidance, including equipment debugging, operation training, fault diagnosis and solution delivery.
• Standard Spare Parts Supply: Standardized spare parts and consumables are available globally to shorten equipment downtime and ensure continuous operation.
• Regular Calibration & Maintenance Guidance: Provide free annual remote equipment calibration, system inspection and maintenance guidance services.
• Customized Process Technical Training: Offer standardized operation documents and professional technical training, assisting customers in formulating test procedures compliant with JEDEC, MIL-STD, AEC-Q100 and other international standards.
• Extended Warranty Service: Optional extended warranty covers vacuum system maintenance, temperature sensor calibration and temperature control system inspection, guaranteeing long-term stable equipment performance.
5. Core Product Advantages Summary
• Industry-Leading Ultra-Fast Thermal Cycling: Customizable 5～25℃min temperature change rate, 4 times higher efficiency than traditional equipment, supporting high-frequency accelerated thermal cycle testing.
• High-Precision Full-Range Temperature Control: -70℃～180℃ ultra-wide temperature range, stable dynamic and static temperature uniformity, ensuring consistent batch test data.
• High-Cleanliness Precision Test Environment: Mirror stainless steel anti-pollution structure, suitable for high-standard testing of MEMS bare dies and packaged precision components.
• Standardized Global Data Traceability: Intelligent programmable control and remote monitoring system, fully compliant with international quality system certification requirements.
• Professional Global Technical Service: 24/7 online remote support and standardized after-sales system to minimize equipment operating risks and losses.
Conclusion
As foundational core components of intelligent terminals, smart vehicles, aerospace and industrial manufacturing, MEMS sensors determine the quality and stability of terminal products. High-accelerated thermal cycling testing is an essential method to excavate latent defects and improve the inherent reliability of MEMS devices from the source.
With advanced ultra-fast thermal cycling technology, high-precision temperature control, exclusive high-cleanliness design and standardized global service system, Lab Companion provides efficient, professional and compliant reliability testing solutions for global MEMS manufacturers. We help MEMS products improve extreme condition adaptability and overall reliability, empowering the high-quality development of global precision electronic component industries.
High-low temperature test chambers are core precision equipment for reliability testing in semiconductors, automotive-grade electronics, AI chips, and high-speed optical modules. The temperature control accuracy and operational stability of the equipment directly determine the authenticity and validity of test data for chip temperature cycling, high and low temperature durability, and rapid temperature change tests. They also underpin the product quality stability and brand reputation of global electronics enterprises.
In 2026, China’s environmental test equipment industry ushers in accelerated technological iteration. Chinese manufacturing has achieved remarkable breakthroughs in high-precision test equipment, becoming a cost-effective and high-reliability alternative to imported brands. However, the market is still mixed with inferior products featuring false parameter labeling and simplified configurations. Global buyers are likely to face three major risks: distorted test data, premature equipment failure, and inadequate after-sales support. Based on front-line actual tests and international semiconductor industry practical experience, this article takes Lab Companion—a leading high-end environmental test equipment brand manufactured in China—as the core research object. It deeply analyzes core pain points in chip testing and sorts out comprehensive purchasing avoidance strategies, helping global R&D and procurement teams select suitable equipment, control costs, and avoid selection risks.
I. 2026 Actual Test Experience: Authentic Performance for Professional Chip Testing Scenarios
1.1 Core Performance: High Precision & Ultra Stability to Meet Strict Chip Testing Standards
Chip reliability testing imposes extremely strict requirements on temperature control accuracy. Authoritative industry standards including JEDEC JESD22-A104 and AEC-Q100 clearly stipulate that the equipment’s temperature fluctuation shall be ≤±0.3℃, temperature uniformity ≤±0.5℃, and display accuracy up to 0.01℃. Only high-precision professional equipment can accurately capture the critical failure state of chips at the 0.05℃ level and ensure fully compliant and valid test results.
Lab Companion Actual Test Performance: This test adopts Lab Companion TC series rapid temperature change test chambers and PSL series high-low temperature test chambers, mainstream models independently developed and produced in China. The standard temperature range covers -70℃~+150℃. Under full-load working conditions that conform to international industry standards (sample volume accounts for 1/4 of the inner tank volume), the temperature fluctuation is stably controlled within ±0.2℃ at core test points of 125℃ high temperature and -40℃ low temperature, and the overall temperature difference inside the chamber is ≤±0.4℃.
The temperature rise and fall rate is fully linear and controllable: the standard rate is 5℃/min, high-speed models reach 15-20℃/min, and high-end customized models support a maximum rate of 25℃/min with no performance attenuation throughout operation. After 1,000 consecutive temperature cycle tests, the equipment maintains zero temperature control drift and zero data deviation. The test data is fully recognized by international authorities and can be directly used for automotive-grade chip certification.
Pain Points of Inferior Equipment: Most low-end counterfeit equipment falsely labels ±0.2℃ high precision. The actual no-load fluctuation reaches ±0.6℃, and the full-load fluctuation soars to ±0.8℃ with severely exceeded temperature uniformity. Test data deviation exceeds 5% for chips placed in different positions, leading to completely invalid test results. Meanwhile, rate false labeling is common: the nominal 15℃/min rate is only 8℃/min in actual tests. Long-term operation causes frequent compressor start-stop and sudden temperature cycle interruptions, resulting in batch scrapping of chip samples and substantial R&D and production losses.
1.2 Operational Experience: Scenario-Based Design for High-Frequency Continuous Chip Testing
Chip testing is characterized by small-size samples, multi-station operation, long-cycle and non-stop continuous operation, with a single temperature cycle test requiring 500 to 1,000 iterations. The detailed adaptability of equipment directly determines testing efficiency and labor cost control.
Full-Range Chamber Volume Adaptation: As a professional Chinese manufacturer, Lab Companion supports customized equipment volumes from 36L to 10,000L. Mainstream 50L-300L models perfectly adapt to global chip R&D verification and mass production screening scenarios. The 300L model can carry 50-80 automotive-grade chips at the same time, reserving a standard temperature field space 4 times the sample volume to ensure uniform internal temperature.
All equipment is equipped with 1.5mm thick SUS304 mirror stainless steel inner tank, anti-static tray, probe station linkage interface, and anti-condensation transparent observation window. It fully adapts to chip live testing and real-time status observation, and completely avoids chip static damage, meeting the high-standard testing needs of global semiconductor enterprises.
Intelligent Control System for Unattended Operation: Lab Companion independently develops the Q8 intelligent control system equipped with AI fuzzy algorithm and dual PID precise temperature control technology. It supports more than 100 programmable temperature control segments and infinite cycle operation, with switchable linear and non-linear temperature change modes. Test curves and full test data can be exported with one click, covering the entire process of chip R&D and mass production testing.
The exclusive adaptive PID technology automatically offsets temperature interference caused by chip self-heating, ensuring zero drift of full-load test data. Built-in power-off memory, automatic fault early warning, and remote monitoring functions support 7×24-hour unattended operation, greatly reducing manual maintenance costs for global laboratories and production lines.
Low Energy Consumption & Low Noise: Adopting variable-frequency cascade refrigeration technology and optimized air duct structure independently developed in China, the full-load power consumption of the 300L model is ≤3.5kW, 30% more energy-saving than traditional international generic equipment. The operating noise is ≤55dB, with no environmental interference, fully suitable for long-term stable operation in global R&D laboratories and mass production test lines.
1.3 Long-Term Stability: 7×24H Full-Load Operation for High-Intensity Testing
Chip reliability testing requires all-weather continuous operation. The long-term stability of equipment is the core guarantee for stable test progress and low maintenance costs, and also a key indicator of the strength of Chinese high-end test equipment manufacturing.
Lab Companion Core Advantages: All core refrigeration components adopt original imported compressors from Bitzer (Germany) and Tecumseh (France), matched with thickened 304 stainless steel inner tanks and triple safety protection mechanisms (over-temperature, overload, and leakage protection).
As a benchmark brand of Chinese-made high-end environmental test equipment, all Lab Companion equipment undergoes strict factory inspections: 48-hour full-load limit operation tests and 1,000 high-low temperature cycle verification. The annual average failure rate is ≤0.2%, no major maintenance is required within 3 years, and the Mean Time Between Failures (MTBF) reaches 20,000 hours, fully adapting to the high-intensity and high-frequency testing needs of global semiconductor mass production lines.
Pain Points of Inferior Equipment: Low-cost generic equipment uses thin inner tanks and assembled miscellaneous compressors. After one month of continuous operation, it will suffer from reduced refrigeration efficiency, inner tank frosting, and temperature control failure. Frequent shutdowns and maintenance interrupt chip test progress, causing project delays and cost overruns.
1.4 Global After-Sales Service: Exclusive Overseas Remote Support System
Chip testing has a long cycle and high technical threshold, and timely technical support is crucial for global users to ensure continuous and stable testing. For overseas markets, Lab Companion provides professional global online after-sales services (no on-site door-to-door service for overseas regions), supporting full-cycle remote technical guidance and fault diagnosis.
We provide 24/7 global online technical support, remote fault troubleshooting, program debugging, equipment calibration guidance, and operational training services. Core equipment spare parts are stocked overseas for quick delivery, matched with a 1-year complete machine warranty, effectively solving the equipment operation and maintenance concerns of global semiconductor enterprises.
In contrast, inferior brands lack overseas service systems and professional technical teams. Equipment failures will lead to long-term test stagnation, directly causing project delays and missed product launch windows.
II. 2026 Global Purchasing Avoidance Guide: 4 Core Dimensions to Prevent Selection Risks
2.1 Parameter Verification: Reject False Labeling, Only Recognize Full-Load Actual Test Data
All parameters must be verified in accordance with international standards GB/T2423 and IEC60068. Reject marketing gimmicks and take actual test data and official calibration reports as the only valid basis:
• Temperature Range Selection: -40℃~+125℃ for consumer electronic chips; -70℃~+150℃ mandatory for automotive-grade chips; customized -80℃~+180℃ ultra-wide temperature range for aerospace and military chips. Do not blindly pursue extreme temperature ranges to avoid unnecessary cost increases of more than 30%.
• Strict Accuracy Standards: Firmly implement three core indicators: fluctuation ≤±0.3℃, uniformity ≤±0.5℃, display accuracy 0.01℃. Global purchasers must ask for third-party metrology calibration reports and focus on full-load actual test data, rather than nominal no-load parameters in brochures.
• Clarify Temperature Change Rate Conditions: Strictly distinguish no-load and full-load rates. Automotive-grade rapid temperature change testing requires a full-load rate ≥15℃/min in the core range of -40℃~+85℃. The procurement contract must clearly stipulate "linear rate, no full-load attenuation" to avoid false rate marking.
• Scientific Chamber Volume Matching: Follow international industry standards: ordinary sample volume ≤1/3 of inner tank volume, high-heat-dissipation chip sample volume ≤1/4 of inner tank volume. Calculate the required equipment volume according to the formula "total sample volume × 4" to ensure uniform temperature field.
Key Avoidance Tip: Strictly guard against "qualified no-load data but shrunk full-load performance" and "parameter-only publicity without official calibration reports". All core parameters must be supported by authentic full-load test data.
2.2 Configuration Verification: No Compromise on Core Hardware, Focus on Chip Testing Scenarios
• Core Hardware Configuration Standards: Adopt original imported Bitzer/Tecumseh compressors, ≥1.5mm thick 304 stainless steel inner tank, 3D convection air duct structure for uniform global temperature field, and industrial-grade intelligent PID controller to support multi-segment programming and full data traceability.
• Exclusive Chip Testing Configuration: Standard anti-static structure, probe station linkage interface, anti-condensation observation window, remote monitoring & automatic data export, and door opening fast temperature recovery (≤5min), fully adapting to chip live testing, multi-station testing, and long-term unattended operation.
• Complete Safety Configuration: Equipped with over-temperature, overload, leakage, and compressor delay protection; humid models are additionally equipped with water shortage protection to eliminate risks of chip burnout and equipment damage.
Key Avoidance Tip: Low-cost generic equipment is equipped with miscellaneous compressors, thin iron inner tanks, and simple controllers. Although the upfront procurement cost is low, it leads to inaccurate test data and high failure rates, with long-term maintenance costs far exceeding the price difference.
2.3 Manufacturer Verification: Prefer Professional Chinese Manufacturers with In-Depth Industry Experience
• Qualification & Industry Accumulation: Prioritize high-tech enterprises with more than 10 years of professional environmental test equipment R&D and manufacturing experience, ISO9001 certification, independent R&D patents, and rich service experience in the global semiconductor and automotive electronics industries. As a leading Chinese manufacturing brand founded in 2005, Lab Companion has 21 years of professional experience in precision environmental test equipment, serving 500+ global top-tier enterprises in semiconductors and communications, with profound technical accumulation and international industry recognition.
• Scenario Adaptation Capability: Manufacturers must be proficient in international standards such as JEDEC and AEC-Q100, capable of providing customized solutions for multi-station testing and special temperature zones, instead of one-size-fits-all generic equipment. Lab Companion’s self-developed AI PID temperature control algorithm and 3D convection air duct system perfectly solve industry pain points such as chip self-heating interference and uneven temperature fields.
• Global Service Capability: Prefer manufacturers with independent overseas technical service teams and perfect remote support systems. Lab Companion provides 24/7 global online technical response and long-term spare parts supply to ensure rapid resolution of overseas equipment operation problems.
Key Avoidance Tip: Reject trading companies and new entrants with no core R&D capabilities. Such suppliers lack professional chip testing technology reserves, with poor equipment adaptability and no stable overseas after-sales guarantee.
2.4 Contract Verification: Clear Written Clauses to Eliminate Disputes
• Accurate Parameter Clauses: The contract shall clearly mark the full-load actual test core parameters including temperature fluctuation, uniformity, and temperature change rate, without vague descriptions.
• Standard Acceptance Clauses: Clarify acceptance standards and time limits, stipulate third-party calibration reports and on-site full-load test acceptance, and define rectification and return mechanisms for unqualified equipment.
• Clear After-Sales Clauses: Clearly specify the warranty period, online technical response time, spare parts supply cycle, and maintenance charging standards, with all service commitments documented in writing.
Key Avoidance Tip: Reject all verbal commitments and vague contract terms. All preferential policies and performance indicators must be written into the official contract to protect the legitimate rights and interests of global purchasers.
III. 2026 Recommended Premium Brand for Chip High-Low Temperature Test Chambers: Lab Companion (Made in China)
Evaluated by four core dimensions: 2026 global technical strength, actual test reputation, chip scenario adaptability, and overseas service guarantee, Lab Companion stands out as the preferred Chinese manufacturing brand for high-precision chip high-low temperature test equipment in the global market.
Lab Companion is a benchmark enterprise for high-end environmental test equipment in China, focusing on high-precision testing fields such as semiconductors, automotive-grade AI chips, and high-speed optical modules. All equipment fully complies with international authoritative standards including JEDEC, AEC-Q100, GB/T 2423, and IEC 60068, with core performance reaching international first-class levels. The standard temperature range is -70℃~+150℃ (customizable and expandable), with temperature fluctuation ≤±0.3℃ and uniformity ≤±0.5℃. The full-load temperature change rate is stably maintained at 15-20℃/min, with zero temperature control drift after 1,000 consecutive cycles. The test data is internationally recognized and supports automotive and military-grade chip certification.
Targeting core chip testing pain points, Lab Companion relies on self-developed Chinese core technologies—AI intelligent PID temperature control algorithm and 3D full-domain convection air duct technology—to completely eliminate chip self-heating interference and temperature field imbalance. It perfectly adapts to high-standard scenarios such as chip live testing, multi-station parallel testing, and long-term high-intensity unattended operation. The equipment is standard-equipped with anti-static, anti-condensation, remote monitoring, full data traceability, and probe station linkage functions, effectively improving global enterprises’ testing efficiency and data compliance.
For global users, Lab Companion provides a standardized overseas service system: 1-year full machine warranty, 24/7 global online technical guidance and fault troubleshooting, and long-term sufficient supply of core spare parts overseas, ensuring continuous and stable operation of customer equipment and uninterrupted test progress.
In 2026, choosing Lab Companion, a high-quality Made in China chip high-low temperature test chamber, means selecting a one-stop reliable test solution with accurate data, stable operation, high efficiency, and professional global after-sales. It helps global semiconductor enterprises strictly control product quality, accelerate product launch, and seize global market opportunities.
Driven by the rapid advancement of new energy vehicles and energy storage industries, battery pack performance—including energy density, fast-charging capability, and thermal management reliability—has become a core benchmark for market competitiveness. As the dominant thermal management solution for modern battery packs, liquid cooling systems deliver efficient and uniform heat dissipation. Their tightness, cyclic stability, and environmental adaptability under extreme temperature and humidity conditions directly determine the safety and service life of EV and energy storage battery packs.
Based in China’s Yangtze River Delta, a core industrial cluster for new energy batteries, vehicle manufacturing, and supporting components, Lab Companion develops dedicated liquid-cooled temperature and humidity test chambers for battery pack validation. Equipped with a patented anti-condensation system, our equipment eliminates condensation defects that commonly occur in conventional environmental chambers during low-temperature and high-humidity cycling. It provides stable, accurate, and condensation-free test conditions for R&D verification and mass production reliability testing of battery pack liquid cooling systems.
1. Core Technical Challenges of Battery Pack Liquid Cooling System Testing
1.1 High Environmental Sensitivity of Liquid Cooling Systems
A complete battery liquid cooling system consists of cooling plates, pipelines, water pumps, throttle valves, and cooling fluid media. These components are highly sensitive to alternating temperature and humidity conditions. Under high-temperature and high-humidity environments, the cooling fluid may suffer performance degradation, such as increased conductivity and viscosity deviation. During rapid temperature drop cycles, pipeline connectors and sealing gaskets are prone to micro-deformation due to thermal expansion and contraction, leading to potential micro-leakage risks.
Therefore, standardized temperature and humidity cycling tests are essential to simulate extreme climate conditions worldwide, including high-temperature humid regions and low-temperature dry regions, as well as actual vehicle operating conditions such as fast-charging heat generation and cold-start scenarios, to fully verify the long-term reliability of liquid cooling systems.
1.2 Hidden Risks Caused by Condensation in Conventional Test Chambers
Traditional temperature and humidity chambers inevitably generate condensation on the inner walls and sample surfaces during dynamic temperature and humidity cycling, which causes severe interference and potential hazards for battery liquid cooling system testing:
• Condensation dripping on high-voltage connectors reduces insulation resistance, leading to leakage and short-circuit risks;
• Moisture penetration into pipeline insulation layers damages thermal insulation structure and degrades heat preservation performance;
• Condensation on cooling plate surfaces distorts heat exchange efficiency test data, resulting in inaccurate and unrepresentative test results.
Lab Companion’s patented anti-condensation technology solves this industry pain point systematically through optimized airflow organization, precise humidity control, and upgraded chamber structural design.
2. Lab Companion Patented Anti-Condensation Technology
2.1 Dual Dehumidification & Dry Air Purging System
The chamber adopts a dual-stage dehumidification solution combining mechanical compression dehumidification and molecular sieve rotary dehumidification to adapt to full-range temperature and humidity switching. During the transition from high-temperature humid conditions to low-temperature conditions (e.g., 20℃/95%RH to -40℃), the system automatically activates dry air purging. Preprocessed dry air with a dew point ≤ -40℃ is injected into the chamber to rapidly replace humid internal air, fundamentally preventing vapor saturation and condensation during temperature drop processes.
2.2 Full-Cavity Wall Anti-Condensation Heating Technology
High-precision low-power heating tapes are arranged on high-risk condensation areas, including chamber inner walls, door frames, and observation windows, and linked with the main control system in real time. The system continuously monitors internal temperature, dew point temperature, and humidity. When the wall temperature approaches the dew point threshold, micro constant-temperature heating is automatically triggered with a precise temperature difference control within 2℃. This ensures that the inner wall temperature is always higher than the air dew point, physically eliminating structural condensation.
2.3 Optimized Airflow Structure to Avoid Local Sample Condensation
Different from the direct-blow structure of traditional chambers, Lab Companion adopts a side-wall porous uniform airflow design with adjustable guide baffles, forming a uniform surrounding airflow field. The surface wind speed of battery samples is stably controlled between 0.5 m/s and 1.5 m/s, preventing local overcooling and condensation caused by direct high-speed cold air impact. The dual horizontal and vertical composite air supply mode adapts to battery packs of various sizes and structures.
2.3 Patent Certification & Third-Party Verification
Lab Companion’s anti-condensation technology has obtained national utility model patents and passed authoritative verification by the National Institute of Metrology, China. Under the full working range of -40℃ to 85℃ and 10%~98%RH, continuous 500-hour unattended operation proves that no visible condensation appears on the chamber’s visible area and key sample surfaces, delivering stable and reliable anti-condensation performance.
3. Professional Liquid Cooling Test Configuration & High-Precision Control System
3.1 Integrated Liquid Cooling Circulation Interface for Vehicle-Condition Simulation
The chamber is equipped with standard G1/2 internal thread liquid inlet and outlet interfaces, which can be directly connected to external cooling circulation devices. Closed-loop liquid cooling tests can be realized without chamber modification, highly restoring the actual vehicle thermal management loop. The pipeline adopts corrosion-resistant stainless steel material, with sealing parts supporting a wide temperature range of -60℃ to 200℃, compatible with mainstream ethylene glycol-based cooling fluids. Built-in high-precision flow meters and pressure sensors record real-time flow rate and pressure fluctuation data to ensure full test traceability.
3.2 Three-Parameter Independent Closed-Loop Control
The intelligent multi-loop control system supports independent closed-loop regulation of three core parameters to simulate complex vehicle operating conditions:
• Independent temperature and humidity control of chamber internal air;
• Multi-point temperature monitoring inside battery packs (supporting thermocouple lead access);
• Independent programmable temperature control of cooling fluid inlet and outlet.
It supports synchronous operation of rapid chamber temperature change and constant/following cooling fluid temperature change, accurately reproducing actual vehicle thermal management behaviors such as fast charging heat generation and low-temperature cold start.
3.3 Custom Large Capacity & Comprehensive Safety Protection
To adapt to the large size and heavy weight of power battery packs, Lab Companion provides standard chamber volumes from 1m³ to 10m³ and supports fully non-standard customization. The chamber bottom is reinforced with load-bearing structure and equipped with auxiliary lifting platforms to simplify sample access and improve test efficiency.
The safety configuration fully complies with international battery test specifications. Standard configurations include explosion-proof pressure relief ports and smoke alarm systems; optional automatic nitrogen fire extinguishing devices effectively cope with extreme scenarios such as battery thermal runaway, fully meeting UL and IEC international safety standards to protect personnel and equipment safety.
4. Typical Application Scenarios
4.1 Liquid Cooling Plate Temperature & Humidity Cycling Durability Test
A Chinese new energy core component enterprise verified the tightness and corrosion resistance of battery liquid cooling plates under alternating extreme conditions. The test cycle was set to 12 hours, including 6 hours of high temperature and high humidity (85℃/95%RH) and 6 hours of low-temperature drying (-40℃), with a total of 200 cycles.
Throughout the test, the chamber maintained stable temperature and humidity output. The anti-condensation system was automatically activated during condition switching, leaving no condensation on sample surfaces. Helium leak detection after the test showed no leakage rate change, and no impurities or precipitation appeared in the cooling fluid, fully verifying the durability and stability of the liquid cooling plate.
4.2 Low-Temperature Cold Start Test of Complete Battery Pack Liquid Cooling System
A Chinese vehicle OEM conducted low-temperature start verification for battery pack liquid cooling systems under extreme winter conditions. The test required 8-hour static storage at -30℃ with synchronous low-temperature cooling fluid, followed by rapid temperature rise to detect stalling, abnormal noise, or startup failure of pipelines and water pumps.
Benefiting from independent fluid temperature programming capability, the chamber supports a uniform heating rate of 5℃/min, accurately simulating real low-temperature startup conditions. Zero condensation interference ensures authentic and reliable test results, effectively shortening OEM R&D and verification cycles.
4.3 High-Altitude Low-Pressure & Humidity Coupling Test
For export vehicle project requirements, Lab Companion provides an optional low-pressure module to simulate high-altitude environments up to 4000m (62kPa equivalent air pressure). It achieves accurate humidity control under air pressure ≥20kPa, covering complex coupling test conditions of low pressure, wide temperature variation, and high humidity, meeting global standard verification requirements for exported vehicles.
5. Localized R&D & After-Sales Service in China
Lab Companion maintains an R&D and service center in Shanghai, China, delivering efficient and professional full-cycle technical support and after-sales services for global and domestic customers:
2-hour remote response: Professional engineers deliver fast remote diagnosis, parameter commissioning and online fault troubleshooting via video & remote desktop;
Spare parts & consumables inventory: Full-range spare parts and standard consumables are stocked at our Shanghai warehouse for prompt worldwide shipping upon request;
Semi-annual remote preventive maintenance: Free remote equipment calibration guidance, system inspection and sealing component maintenance consultation;
Customized online training: Remote operation training plus full set of SOP documents, supporting customized test procedure compilation via online technical coaching.
• Semi-annual regular inspection: Free on-site equipment calibration, system cleaning, and sealing component inspection to ensure long-term stable operation;
• Professional technical training: On-site operation training and complete SOP documents are provided, supporting customized test procedure formulation.
6. Core Technical Advantages
• Patented Anti-Condensation System: Multi-system linkage control eliminates condensation on chambers and samples under all working conditions, avoiding safety hazards and test data distortion;
• Integrated Liquid Cooling Test Design: Plug-and-play liquid cooling interface realizes vehicle-level loop simulation without external modification;
• Ultra-Wide Environmental Simulation Range: Temperature range: -70℃ to 180℃, humidity range: 10%~98%RH, optional low-pressure module for full-scenario test coverage;
• Full Data Traceability: Real-time recording of temperature, humidity, air pressure, cooling fluid flow, temperature, and pressure data, compliant with IATF 16949 and ISO 17025 certification requirements;
• Multi-Dimensional Safety Redundancy: Complete explosion-proof, early-warning, and fire-extinguishing configurations adapt to high-power battery pack rigorous test scenarios.
Conclusion
Thermal management performance determines the cruising range, safety, and service life of new energy battery packs, serving as a key link in product R&D and quality verification. Lab Companion focuses on the actual test demands of the new energy industry. With patented anti-condensation technology as the core advantage, our integrated liquid-cooled temperature and humidity test chamber realizes collaborative and precise control of environmental simulation and liquid cooling loop operation.
Widely applicable to reliability testing of liquid cooling plates, cooling pipelines, and complete battery pack systems, our equipment delivers condensation-free, high-stability, and high-precision test conditions, helping global customers optimize R&D cycles and improve product market competitiveness. Lab Companion will continue to focus on environmental test technology innovation for the new energy industry, empowering the high-quality development of global green transportation and energy storage industries.
Third-party testing institutions are the most rigorous evaluators of environmental test equipment. They not only conduct various product reliability tests with these chambers, but also perform professional performance calibration in accordance with national metrology standards. For an ESS rapid temperature change chamber, its overall performance in metrology convenience, long-term stability, data integrity and temperature uniformity determines whether it can gain long-term recognition from laboratories. Based on real-world feedback from multiple national-level testing centers and accredited laboratories, this article summarizes ten core evaluation criteria for ESS chambers and elaborates on the outstanding performance of Lab Companion ESS rapid temperature change chambers.
1. User-Friendly Metrology & Calibration Interfaces
Laboratories are required to conduct periodic calibration for test chambers every year, which typically involves placing 9 or 15 temperature sensors inside the chamber. Lab Companion ESS chambers are equipped with standard Φ50mm cable ports on the side and top panels, along with detachable sensor brackets to facilitate sensor layout and wiring. The built-in multi-point calibration function allows operators to input readings from standard instruments for automatic deviation correction, with no hardware disassembly required.
An engineer from a provincial metrology institute commented: "The cable ports are well positioned for smooth sensor routing. Calibration efficiency is 30% higher compared with other brands."
2. Excellent Long-Term Operational Stability
Test equipment in laboratories often runs continuously for weeks or even months. Temperature drift is a key indicator of long-term stability. Lab Companion adopts high-grade Pt100 platinum resistance sensors and self-adaptive PID control algorithm, delivering an annual temperature drift of ≤ 0.3°C.
In a 12-month continuous monitoring test conducted by third-party institutions, the temperature deviation remained within ±0.5°C without intermediate recalibration, fully complying with the calibration cycle specified in JJF 1101.
3. Superior Repeatability of Temperature Uniformity
ESS screening requires consistent temperature across the entire chamber, as well as stable performance across different test batches. Featuring a dual-airflow circulation system and multi-point temperature sensing design, our chambers maintain temperature uniformity within ±2°C, exceeding the national standard of ±3°C.
More importantly, the uniformity deviation is controlled within 0.5°C in repeated tests at different time points. Such outstanding repeatability ensures high credibility of test reports issued by laboratories.
4. Complete Data Recording & Traceability
Laboratory management systems such as CNAS and CMA set strict requirements on data traceability. The controller of Lab Companion ESS chambers supports real-time curve recording with an adjustable sampling interval of 1 second, and stores historical data for no less than 10 years. Users can export data in CSV or PDF format via USB with one click. The optional electronic signature function complies with 21 CFR Part 11 regulations.
All records are embedded with timestamps and unique device IDs, and cannot be tampered with, fully meeting the original record management requirements of professional laboratories.
5. Low Failure Rate
Equipment failure directly affects laboratory test schedules and customer satisfaction. According to statistics collected from multiple third-party testing institutions in 2025, the annual repair rate of Lab Companion ESS rapid temperature change chambers is below 2.5%, far lower than the industry average.
A facility manager from a national-level testing center shared: "We have 11 Lab Companion chambers in service. The oldest unit has been running for 4 years. Aside from regular air filter replacement, there has never been any downtime caused by refrigeration or control system faults."
6. Comprehensive Standard Program Library
Laboratories need to follow various industry test standards for different clients. The controller comes preloaded with over 50 commonly used test programs, covering mainstream standards including GJB 1032, MIL-STD-810, IEC 60068-2-14, GB/T 2423.22, ISO 16750, AEC-Q100 and JESD22-A104.
The system automatically fills in parameters such as temperature range, temperature change rate, dwell time and cycle count once a standard is selected, minimizing manual programming errors. It also supports customized program editing and storage, with a maximum capacity of 1,200 segments.
7. Multi-Level Access Rights Management
Multiple operators share laboratory equipment, so permission control is essential to prevent accidental parameter modification. A three-tier access system (Administrator, Supervisor, Operator) is integrated:
• Administrators: Set operating parameters and manage the program library
• Supervisors: Call programs and start tests
• Operators: Only view data and control start/stop functions
All login activities and parameter modifications are recorded in the audit trail log, satisfying the traceability requirements of CNAS equipment management.
8. Convenient On-Site Calibration & Correction
Slight sensor drift is inevitable after long-term operation. Traditional solutions require factory return or on-site service by technicians. Lab Companion provides a user-friendly on-site calibration interface.
Operators only need to place a standard platinum resistance sensor in the working area. After the temperature stabilizes, input the difference between the standard reading and the displayed value, and the system will complete calibration automatically. The whole process takes less than 15 minutes without any tools, greatly cutting calibration time and costs.
9. Remote Monitoring & Alarm Notification
With multiple chambers distributed across different rooms, it is difficult for on-duty staff to monitor every unit in real time. Lab Companion devices support alarm push via mobile APP and email. Notifications will be sent automatically in case of over-temperature, compressor overload, water shortage (humidity model) or test completion.
Moreover, the chambers can be connected to the central monitoring screen via Ethernet, realizing unified remote management of all equipment.
10. Optimized Structure for Easy Cleaning & Pollution Prevention
Testing laboratories, especially those for optical, medical and cleanroom-related products, demand high cleanliness. The inner chamber is made of full SUS304 stainless steel with rounded corners to eliminate dead corners for dust accumulation.
The airflow baffle is detachable for easy regular cleaning, and a drain port at the bottom enables convenient flushing. The optional HEPA air inlet filter blocks external dust from entering the chamber, fully meeting the cleanliness requirements of cleanroom environments.
Conclusion
The evaluations from third-party testing institutions fully reflect the professionalism, reliability and usability of ESS rapid temperature change chambers. With solid design and verified performance across the above ten aspects, Lab Companion has won long-term recognition from numerous national-level laboratories.
If you are planning to purchase ESS chambers or upgrade your screening capabilities, real feedback from professional laboratories serves as the most reliable reference. Lab Companion is willing to cooperate with more testing institutions to drive technological progress in the environmental testing industry.
The Core of ESS Screening Lies in Accurate Stress Application
Environmental Stress Screening (ESS) is an indispensable quality control link in the manufacturing process of electronic products. Its core goal is not to test whether a product can "survive" under extreme conditions, but to accelerate the exposure of potential defects in product design, materials, and processes—such as solder joint cracking, chip delamination, and poor packaging airtightness—by applying controllable stresses such as rapid temperature changes and random vibrations. If these defects are not screened out, they may cause early failures in the user field, resulting in high maintenance costs and loss of brand reputation.
In ESS screening, the temperature change curve applied by the rapid temperature change test chamber directly determines the effectiveness and consistency of the screening. A core technical question long discussed in the industry is: which one can more effectively stimulate potential product defects, linear temperature change or nonlinear temperature change? The answer is not a simple "either/or", but depends on the physical characteristics of the product, failure mechanism, and the strictness of screening standards.
With more than 20 years of experience in the field of rapid temperature change chambers, Lab Companion has achieved high-precision reproduction of any preset temperature change curve (including complex nonlinear curves) within the full temperature range of -70℃ to +180℃, relying on advanced coupled control algorithms for refrigeration/heating systems. This article will analyze how Lab Companion redefines the efficiency and precision standards of ESS screening through precise temperature change curve control from three dimensions: technical principles, solutions, and selection strategies.
Part 1: Technical Divide – Analysis of Linear and Nonlinear Temperature Change Principles
To clarify the differences between linear and nonlinear temperature changes, it is first necessary to define the core concept of "temperature change rate" in ESS screening, as well as the essential differences and applicable scenarios of the two modes.
1.1 Nonlinear Temperature Change: A Natural Characteristic of Traditional Modes
In the design of early rapid temperature change chambers, most equipment adopted the control method of "full-power heating" and "full-power refrigeration": when the controller detects the need for temperature rise, the heater outputs at full power; when temperature drop is required, the compressor or liquid nitrogen valve is fully opened. This "open-loop" control mode leads to the actual operating trajectory of the temperature inside the chamber showing an exponential curve—with a fast temperature change rate at the initial stage and a gradual slowdown when approaching the target temperature, which is known as nonlinear temperature change.
The core characteristic of nonlinear temperature change is that the average temperature change rate can reach a relatively high level, but the actual temperature change curve is not a uniform straight line. For many traditional ESS screening standards, nonlinear temperature change can already meet basic screening needs, and the equipment implementation cost is relatively low, making it widely used in early electronic product manufacturing.
1.2 Linear Temperature Change: A Higher Requirement for Stress Consistency
With the improvement of electronic product integration and the complexity of packaging technology, the difference in thermal expansion coefficients (CTE) of different materials inside the product leads to increasingly sensitive thermal stress distribution. The "fast first, slow later" rate fluctuation of nonlinear temperature change will cause inconsistent thermal stress experiences between the product surface and core, as well as different solder joint positions, thereby reducing the repeatability and comparability of screening results and failing to meet the screening needs of high-end products.
Linear temperature change (also known as "linear rapid temperature change") requires the temperature inside the chamber to change at a fixed and uniform rate over time—for example, 10℃/min. During the entire process of heating from -40℃ to +85℃, the temperature rises by an accurate 10℃ every minute. In this mode, every segment of temperature change stress experienced by the product is uniform and predictable, which is crucial for research and certification tests that require strict reproduction of test conditions (such as AEC-Q100, IEC 60068-2-14 Nb test methods) and is the core demand for high-end electronic product screening.
1.3 Implementation Difficulties: Three Major Technical Challenges of Linear Temperature Change
Achieving high-precision linear temperature change requires much higher hardware and software coordination capabilities of the equipment than nonlinear temperature change, and it mainly faces three major technical challenges:
• Dynamic Matching of Refrigeration/Heating Power: During the temperature change process, the heat capacity of the chamber insulation layer, the sample itself, and environmental heat dissipation will all affect the actual required net power in real time. The controller must calculate and adjust the compressor level and heater output in real time to effectively resist temperature overshoot caused by thermal inertia and ensure stable rate.
• Linear Maintenance Within the Full Temperature Range: In the low-temperature section (-70℃ to -40℃), the refrigeration efficiency is high but the heater needs to work together to offset excessive cooling; in the high-temperature section (+100℃ to +180℃), the heating demand is large and the refrigeration system needs to participate appropriately to balance overheating. Maintaining uniform linearity in the full temperature range requires complex system coupling control.
• Adaptability to Load Changes: Different samples have significant differences in thermal load. A device that can perfectly achieve linear temperature change under no-load conditions is prone to rate deviation when loaded with high-heat-capacity samples. Therefore, high-quality linear temperature change chambers must have adaptive load compensation capabilities to cope with load fluctuations in different scenarios.
Part 2: Lab Companion's Solution – A Precise Curve "Sculptor"
Faced with the technical difficulties of linear temperature change and the diverse screening needs of the industry, Lab Companion has developed a temperature change control system with high-precision curve reproduction capabilities through in-depth integration of hardware and software, accurately solving the linear and nonlinear control challenges in ESS screening.
2.1 Core Algorithm: H-PID Dynamic Balance and Feedforward Control
Lab Companion's independently developed Q8 series controller is equipped with an exclusive H-PID dynamic balance algorithm. Different from traditional PID control that only responds passively when the temperature deviates from the set point, the H-PID algorithm introduces a feedforward control module, which can pre-calculate the estimated heating/refrigeration power required according to the preset temperature change rate and the current temperature point, dynamically adjust the compressor level, heater PWM duty cycle, and expansion valve opening, and achieve "predictive" precise control.
Test data shows that during the linear heating process of 10℃/min, the control system can adjust the output in advance according to the real-time feedback temperature deviation and the temperature change trend in the next few seconds, completely eliminating the lag caused by inertia. Within the full range of -70℃ to +180℃, the actual rate deviation of linear temperature change of Lab Companion's rapid temperature change chamber can be controlled within ±0.5℃/min, and the temperature fluctuation during steady state is ≤±0.3℃, far exceeding industry standards.
2.2 Efficient Coupling of Refrigeration/Heating Systems
Lab Companion's rapid temperature change chamber adopts a split structure design, with the refrigeration unit placed externally, and the high-efficiency evaporator and low-noise centrifugal fan retained inside the chamber, balancing temperature control precision and operational stability. On the refrigeration side, French Taikang scroll compressors are selected, combined with electronic expansion valves (EEV) to achieve stepless capacity adjustment (10%~100% continuously adjustable), avoiding temperature change rate fluctuations caused by frequent start-stop and power steps of traditional thermal expansion valves; on the heating side, solid-state relays (SSR) are used to drive nickel-chromium alloy heaters to achieve linear power output, ensuring stable and controllable heating rate.
Through two-way PID adjustment, the refrigeration and heating systems can work together during the temperature change process: during rapid cooling, the compressor operates at full load and the heater is completely turned off; when approaching the target temperature, both output at a small power synchronously to form "counteractive" precise temperature control, effectively avoiding temperature overshoot and ensuring that the temperature change curve fits the preset trajectory.
2.3 High-Precision Reproduction Capability of Complex Nonlinear Curves
In addition to linear temperature change, many special product screenings require asymmetric curves or segmented variable rate curves. For example, when screening some sensitive components, it is necessary to heat from -40℃ to +125℃ at a rapid rate of 15℃/min, and then enter the heat preservation stage at a slow rate of 3℃/min when approaching +125℃ to avoid false failures caused by thermal shock and ensure the authenticity and reliability of screening results.
Lab Companion's Q8 controller supports multi-segment program editing, with a maximum of 100 modes, each containing 99 steps. Users can freely define the temperature change rate, target temperature, and duration of each segment. The built-in curve fitting algorithm of the system can automatically smoothly transition the inflection points between adjacent rate segments, ensuring that the actual operating trajectory is highly consistent with the preset curve; combined with USB data export and IoT remote monitoring functions, the temperature change curve of each screening can be fully recorded and traced to meet compliance requirements.
Part 3: Efficiency First – Optimal Temperature Change Curve Selection Strategy for Different Products
After mastering the precise temperature change curve control capability, how to select linear or nonlinear temperature change and determine the optimal temperature change rate according to product characteristics has become the key to improving screening efficiency and reducing costs. Based on more than 20 years of industry experience and a large number of customer cases, Lab Companion has summarized targeted selection strategies to achieve "precise screening and maximum efficiency".
3.1 Automotive Electronics: Linear Temperature Change is the "Passport" for Automotive-Grade Certification
Case: An automotive electronics enterprise needs to conduct AEC-Q100 Grade 2 (-40℃ to +125℃) temperature cycle testing on BGA packaged control chips. The standard clearly requires the use of linear temperature change, and the temperature change rate deviation must be controlled within ±15% of the specified value.
Lab Companion configured a rapid temperature change chamber with a linear rate of 15℃/min for it, ensuring that the full-range rate deviation is ≤±0.5℃/min through the H-PID algorithm, which fully meets the requirements of automotive-grade certification. Test results show that compared with the previously used nonlinear equipment, the detection rate of early delamination defects in the chip packaging layer has increased by 40%, and the consistency of test results between different batches has been significantly improved, helping the customer pass the automotive-grade certification quickly.
Conclusion: For products that need to meet strict certification standards such as automotive and military grades, prioritizing equipment with high-precision linear temperature change capability is the core premise to ensure the compliance and reliability of screening results.
3.2 Consumer Electronics: Nonlinear Temperature Change Balances Efficiency and Cost
Case: A mobile phone motherboard manufacturer needs to conduct rapid ESS screening on thousands of PCBA boards every day, with the core demand of eliminating process defects such as cold solder joints and poor solder joints. Its screening specifications allow the use of nonlinear temperature change, requiring only an average temperature change rate ≥10℃/min.
Nonlinear temperature change equipment is less difficult to implement and has lower procurement costs, and can achieve a higher average rate under the same refrigeration power. Lab Companion provided it with an economical nonlinear rapid temperature change chamber, which helped the customer reduce the equipment procurement budget by 20% while ensuring the defect detection rate, and shortened the single screening cycle time by 15%, greatly improving production efficiency.
Conclusion: For large-volume, non-certification on-line production screening, nonlinear temperature change is a cost-effective choice that balances screening efficiency and cost.
3.3 Multi-Material Hybrid Components: Custom Curves are the Key
Case: A military component includes an aluminum alloy shell, ceramic substrate, and epoxy potting adhesive, with significant differences in their thermal expansion coefficients (CTE). If a constant high-speed linear temperature change is adopted, the potting adhesive will crack due to concentrated thermal stress—such damage is not a real defect of the product, but an ineffective loss caused by excessive screening stress.
By analyzing the thermodynamic response of each material of the component, Lab Companion engineers customized a segmented nonlinear curve for the customer: a slow change of 3℃/min in the low-temperature zone of -55℃ to -20℃ to avoid epoxy adhesive brittleness; a high rate of 12℃/min in the main temperature zone of -20℃ to +85℃ to efficiently stimulate solder joint defects; and a slowdown to 5℃/min in the high-temperature zone of +85℃ to +125℃ to protect the ceramic substrate. This "customized stress application" not only achieves the screening purpose, but also avoids cost waste and product damage caused by excessive screening.
Conclusion: For multi-material and special-shaped components, in-depth collaboration with equipment suppliers to customize exclusive temperature change curves is the key to improving screening efficiency and ensuring yield.
Conclusion: Choose Lab Companion to Master the Core Competitiveness of ESS Screening
In environmental stress screening, "what kind of stress to apply" is equally important as "how to apply stress accurately". Linear and nonlinear temperature changes have no advantages or disadvantages, and each has its applicable scenarios. What really determines the upper limit of screening efficiency and precision is whether the equipment can accurately reproduce every temperature change curve preset by engineers.
Through independently developed H-PID dynamic balance algorithm, efficiently coupled refrigeration/heating systems, and multi-segment programmable controllers, Lab Companion has achieved high-precision control of linear, nonlinear, and segmented complex curves within the wide temperature range of -70℃ to +180℃. Whether your products need to meet AEC-Q100, IEC 60068-2-14 or GJB 150.5A standards, Lab Companion can provide tailor-made precise temperature change curve solutions.
More importantly, Lab Companion does not only sell equipment, but also provides full-process technical services from product characteristic analysis, temperature change curve selection to on-site verification. With more than 20 years of industry experience, we can help customers scientifically select the optimal temperature change mode, maximize screening efficiency, and avoid cost waste and product damage caused by excessive screening, helping enterprises build a solid product quality line of defense.
Obtenez un devis
Réseau IPv6 pris en charge
